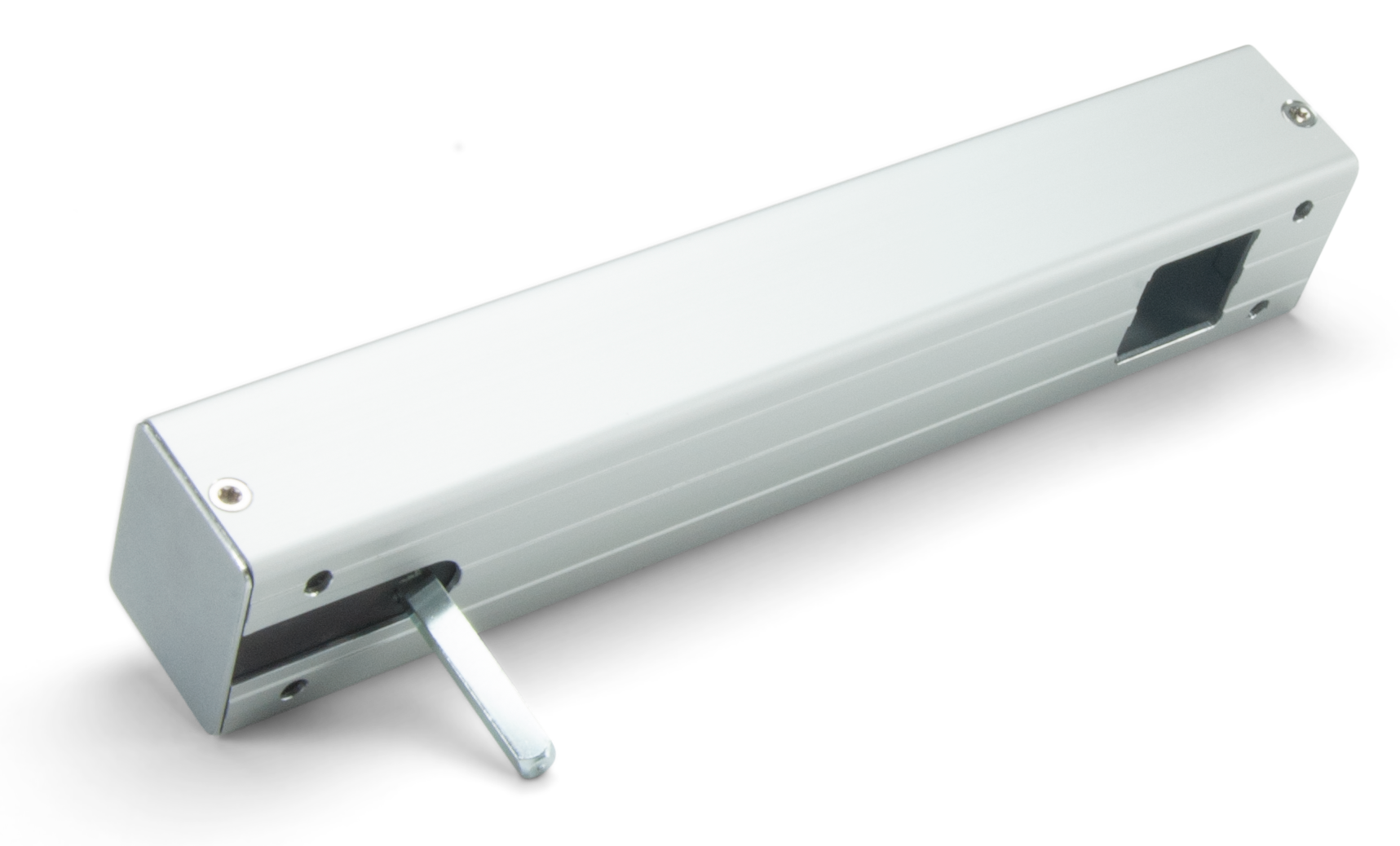

Drafted for the activity of the intern locking stripe of the window. Freely adjustable.With the product ZV-ELIMATIC Simon RWA® expands its range of products in the field of additional locking. The fitting is put on the row between control module and actuator system on the window profile. It is connected directly with the square steel bar via the window handle with the integrated locking stripe and activates it.

The ZV-ELIMATIC could be turned via DIP switch optionally in 90° or 180° towards right or left. The sequence controller is integrated and after reaching the opening position, it switches over to the connected 24 V DC actuator with max. 6 A. During the closing process, the ZV-ELIMATIC needs a CLOSE-response of the actuator either via F-contact or via potential free contact in CLOSE position. Thanks to its slim construction and the coatable steel housing, the product ZV-ELIMATIC fits ideally into the overall look.

It is immediately available for delivery. You can find further information on the product page.
