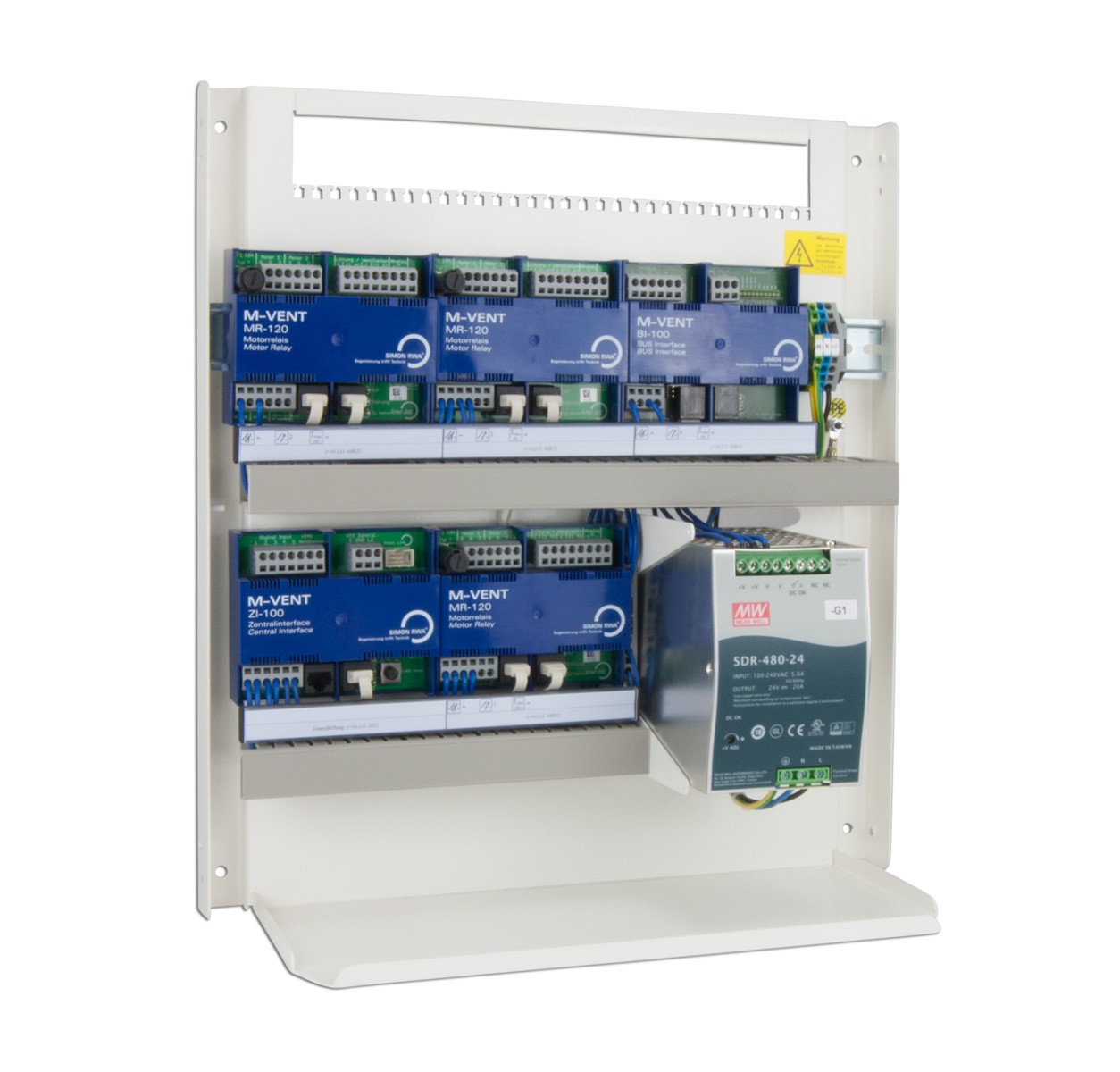

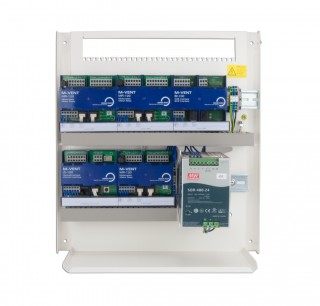

Flexible construction and control of the ventilation groups

The respective ventilation groups can be set up and controlled flexibly. Each ventilation group has modules that react to the inputs and outputs and to the control commands. A switching power supply 230 V AC <> 24 V DC supplies power to the control panel. The expansion stages 5 A, 10 A, 20 A, 24 A, 48 A, 72 A are possible in steps of 24.

Fast diagnostics and easy installation

The modules are kept in "flat design", which guarantees a much easier installation for DIN rail mounting. Using the associated SIMON LINK software interface, individual parameterization is possible at the factory and on the customer side. In addition, the connected modules can be individually named with SIMON LINK and identified at the touch of a button via a visual display.

M-VENT at a glance:

• ​Different expansion stages

• Different housing sizes (steel sheet white or light gray)

• Optional combination of output modules and message interfaces for controlling 24 V DC and 230 V AC actuators

• Settings via SIMON-LINK possible

• two ventilation button inputs ON / OFF per MR-120

• limited ventilation by runtime

• automatic ventilation CLOSED after time x

• Deadman operation for safe opening and closing

• Optional 0-10 V DC / 4 - 20 mA input

• Time-delayed control of the motor outputs

• BUS communication (ModBus TP, KNX in preparation)​
