Our interlocks are entering the PA era!

Following the launch of our ZV-UNI additional locking system, the ZV-ELIMATIC locking system is now also available as a PA version. In addition to the familiar features of the ZV-Elimatic, the new version offers you numerous other advantages, which we have summarised for you here.

Record-breaking opening time

The PA-ZV-ELIMATIC achieves an opening angle of 180° within 10 seconds. This means it unlocks your window even faster than its predecessor. The fast opening time is essential for your safety, as it ensures the fastest possible smoke extraction via the window opening in the event of a fire.

Flexible connection and customisation options

The PA-ZV-ELIMATIC is available in two different versions, where the SICO plug can be connected either externally or internally. This means that there are no limits to the flexibility of installation on site. The locking pin is made of soft metal and can be easily cut to the required length on site (original length: 8 cm), saving time and reducing costs during installation!

Numerous connection thanks to innovative SICO technology

You can easily parameterise or change the direction of rotation and stroke of the PA-ZV-ELIMATIC using your SICO connector and the associated SICO LINK software. An integrated sequence controller, which can also be controlled via SICO, allows you to sequentially connect additional PA actuators that can communicate with the locking system, giving you a perfectly functioning smoke extraction or ventilation system that guarantees maximum safety in the event of a fire or ventilation.

Compact dimensions and elegant design

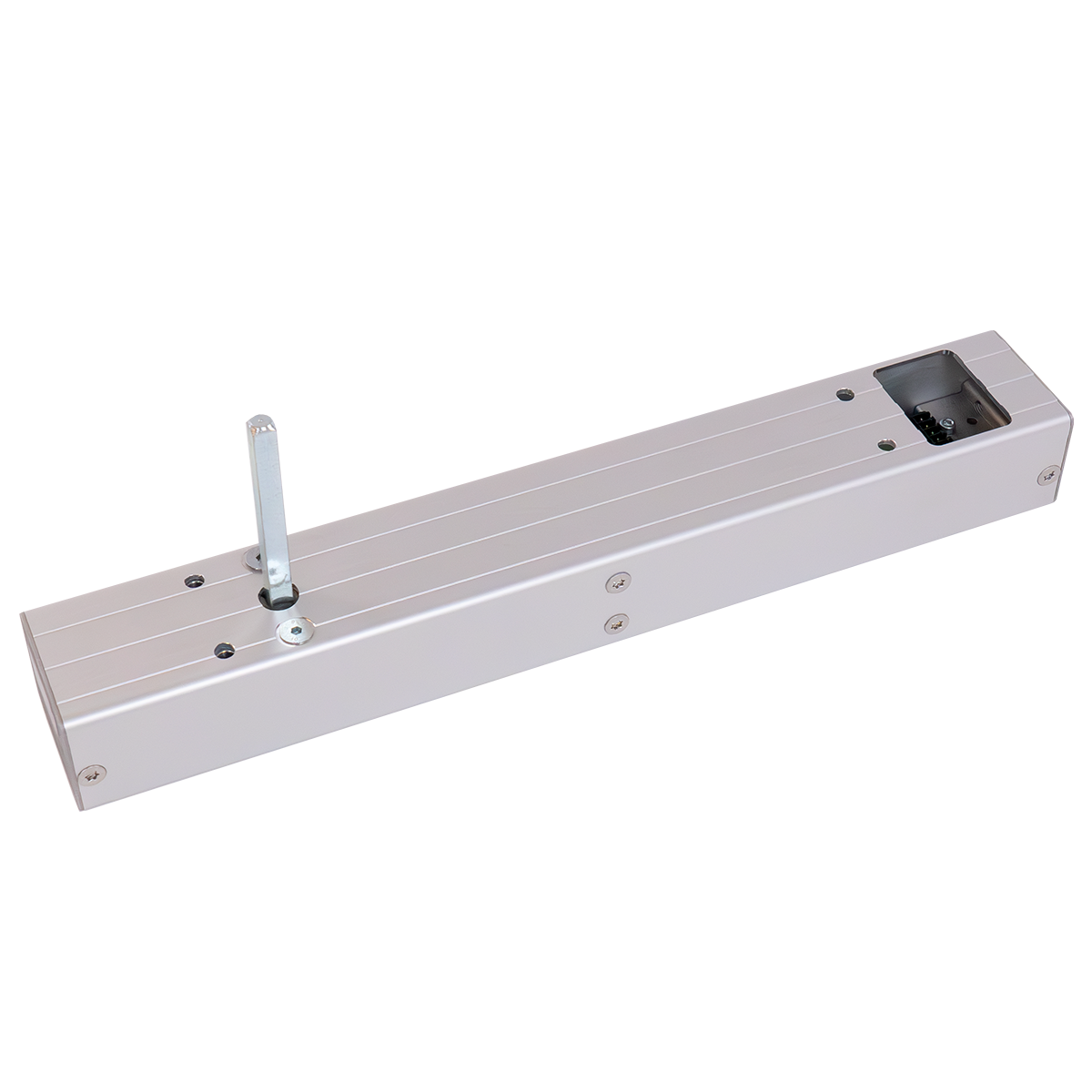

Of course, despite all the security and technical features, the appearance is not neglected. The PA-ZV-ELIMATIC comes in an elegant aluminium housing and impresses with a low installation height of just 43 mm, allowing the locking system to blend in unobtrusively and attractively with your window housing.
