| Part number | M2 2020 |
| Input voltage | 24 V DC |
| Nominal current | 1.2 |
| Opening angle | 122 |
| IP code | IP54 |
| Switch on duration | 30 |
Product Information / Datasheet (PDF)
The Folding Arm² Door Opener PA-KL²-T-30 is used for the automated opening of doors of any kind. It is particularly suitable for self-closing doors that are used as air intake openings for smoke and heat dissipation in an emergency. In this case the body remains firmly connected to the door frame in its movement. Only the arm moves, which pushes the door open via a rolling mechanism. Manual opening of the door is not restricted.
The actuator PA-KL²-T-30 can be used flexibly regarding the installation situation and direction of rotation. It is installed either at the frame or in the reveal, left and right side are possible. It is suitable for use on inward and outward closing elements. It is mounted at the secondary closing edge. Depending on the type of installation, opening widths of up to 122° are possible and, together with the extremely short opening time of less than 60 seconds, this guarantees rapid smoke extraction and ventilation in the event of fire. The targeted opening of doors to open the supply air simultaneously signals the ideal escape and rescue route. This can be combined with signal indicators and lights via a fire alarm system.
The PA-KL²-T-30 actuator is tested and certified according to DIN EN 12101-2. Actuators of the type Folding Arm² have a special kinematics and their high performance gear (> 20.000 LW) in combination with the stainless steel lever arm is very resistant. The folding arm² door opener PA-KL²-T-30 has a force of maximum 300 N in direction "OPEN" and a nominal load of 50 N in "CLOSED". Especially the small installation dimensions make this automatic opener ideal for projects with high aesthetic demands - especially for large and heavy doors.
Easy handling through software interface
The connection is made via the SICO-PLUG connector plug. This contains the SICO BUS programming interface by which parameters such as opening stroke and force can be parameterized directly on site and further status messages can be read out.
The actuator also offers a potential-free contact for the end position OPEN or CLOSED. Work sequence control and start-up delay are freely adjustable. Due to the freely adjustable start-up delay, the door opener folding arm is ideal for the automated opening of double leaf doors (secondary sash application). The PA-KL²-T-30 door opener actuator can also be used in combination with electric openers and electric closer / motor lock which are installed in the door.
Attention: For simultaneous use of an electric opener or electric closer and the feedback contact, the wired variant Folding arm² door opener EA-KL²-T-30-DC is required.
Your advantages at a glance:
| Matchcode | PA-KL²-T-30/122deg |
| Article name | Folding arm² door opener PA-KL²-T-30/122deg |
| Part number | M2 2020 |
| Input voltage | 24 V DC |
| Nominal current | 1.2 |
| Input voltage range | - 15 % / + 15 % |
| Ripple | 500 |
| Opening angle | 122 |
| Push force | 300 |
| Pull force | 50 |
| Classification | EN 12101-2, EN 60335-1, EN 60335-2-103 |
| Cut-Off | Integrated overlaod cut-off with microprocessor |
| Running speed | 2 |
| IP code | IP54 |
| Switch on duration | 30 |
| Mounting way | attached |
| Weight | 4.16 |
| Housing | Aluminium profile housing E6 / EV1 anodized |
| Housing type | |
| Colour | RAL & DB colors |
| Housing length | 474 |
| Housing width | 58 |
| Housing height | 118 |
| Appliance class | III |
| Connection cable | SICO PLUG connection. Excluding connection cable / set. |
| Nominal working temperature | 20 |
| Environment temperature range | 0 °C - 75 °C |
| Brackets included | no |

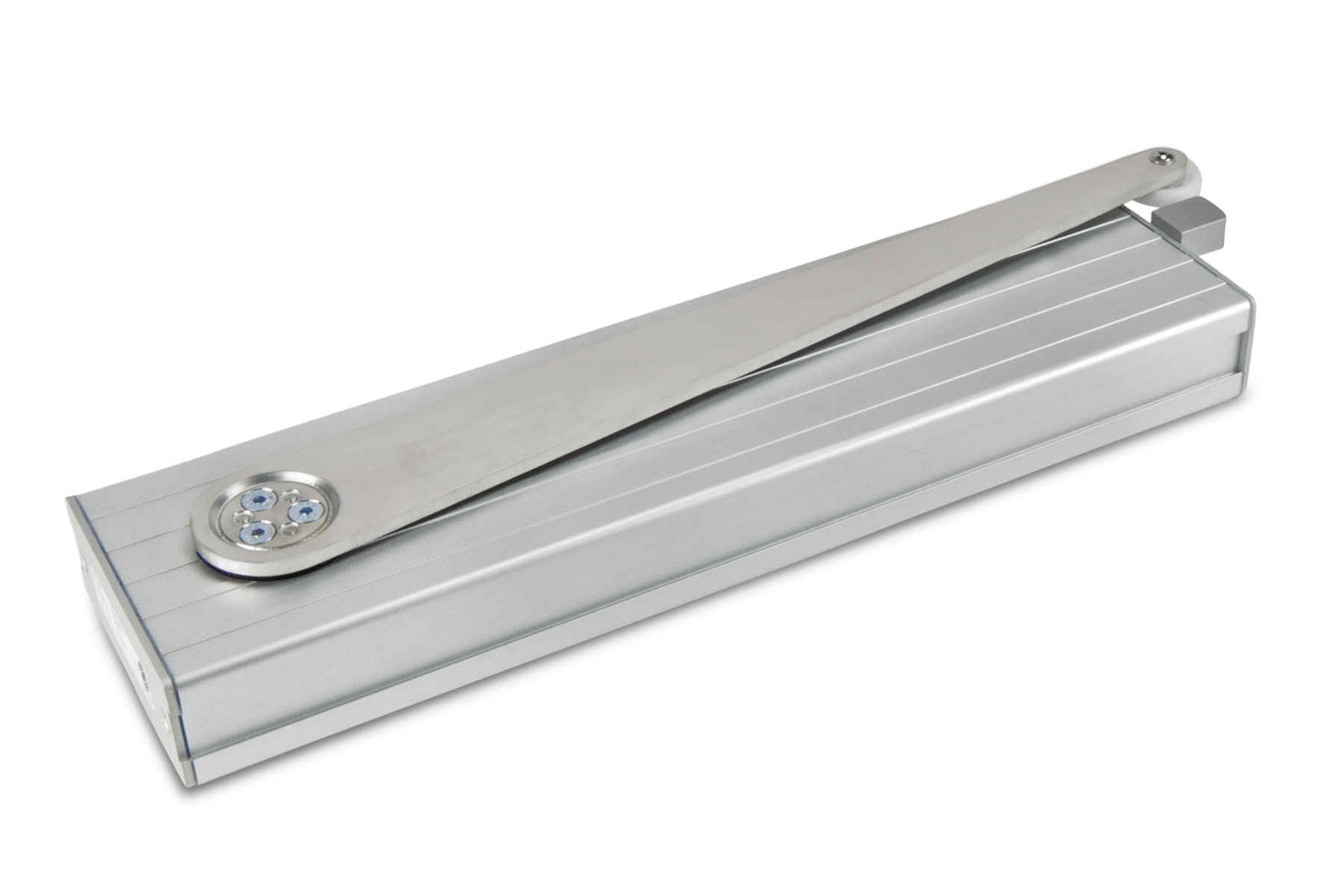

Folding arm² door opener PA-KL²-T-30/122deg
24 V DC / 1.2 A / 300 N / 122° opening width
Single operation actuator
Folding Arm² PA-KL²-T Door opener as electromechanical actuator for opening doors for automated supply air for natural smoke extraction. Powerful actuator with 300 N push force via a lever arm with roller, which is not directly connected to the door leaf. Thus, there are no restrictions for manual door opening in normal operation and as an escape route. The supply air doors are to be designed self-closing with an upper door closer. Suitable for inward and outward opening doors, with bracket set (mounting bracket and mounting plate). With integrated, programmable SICO switch-off technology with microprocessor and SICO-PLUG connection plug. Work sequence control and start-up delay are freely adjustable. Connection for electric opener or motor lock available. Tested and certified for long-term performance according to DIN EN 12101-2.
Technical data:
Rated voltage: 24 V DC (- 15 % / + 15 %)
Ripple: max. 500 mV
Rated current: 1.2 A
Switch-on duration: 30 % ED S2 (ON: 3 min / OFF: 7 min)
Push force / nominal load in “OPEN”: 300 N
Nominal load in “CLOSE”: 50 N
Opening width: 122°
Running speed: 2 °/s
Opening time: within 60 seconds
Protection class: IP54 (IP65 on request)
Temperature range: 0°C to +75°C
Housing: Aluminium profile housing E6 / EV1 anodized
Lever: one-arm, stainless steel, with roller mechanism
Connection: SICO-PLUG (without connection cable / set)
Cut-off: Integrated overload cut-off with microprocessor
Volt-free contact (freely adjustable)
Dimensions (LxWxH): 474 x 58 x 118 mm
Weight: 4.16 kg
Options:
- Connecting cable/set
- Coating according to RAL or DB
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Folding arm² door opener PA-KL²-T-30/122deg
Article number: M2 2020
WEEE Reg. No.: DE 97535049
| Brochure PA-KL²-T Door Opener | Brochure PA-KL²-T Door Opener |
| Brochure Window Automation | Brochure Window Automation |
| Brochure_EA-KL2 | Brochure for folding arm EA-KL2 |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
| Short brochure PA- Folding Arm² | Short brochure for the Folding Arm² PA-KL², PA-KL²-T door opener and PA-KL²-DF rotary wing actuator, incl. SICO |
| Operating manual PA-KL²-T | Operating manual for folding arm PA-KL2-T for opening doors |
| Certificate actuators | CE Declaration of conformity for Folding arm², chain, linear and slit actuators |
| Certificate EN 60335 | EN 60335-1:2012/A11:2014 EN 60335-2-103:2015 |
| Certificate PA-KL2 | Declaration of conformity for folding arm PA-KL2-T for opening doors |
| Certificate UKCA_PA-KL²_PA-KL²-T_PA-KL²-DF | Declaration of conformity for folding arm actuator PA-KL², PA-KL²-T, PA-KL²-DF |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
