| Part number | M2 2485 |
| Input voltage | 24 V DC |
| Nominal current | 1.0 |
| IP code | IP20 |
| Switch on duration | 30 |
Product Information / Datasheet (PDF)
The PA-LSH-75/165 is a SHE slit actuator for Hahn louvre windows. With its 165 mm stroke and 750 N force, it fulfills all requirements for its area of use.
Thanks to its dimensions and the optional reduction of the nominal current (min. 0,5 A), it is the ideal replacement for old actuators of the ZAP series.
Easily parameterize and synchronize your actuators
Actuators of the PA series can be parameterized and synchronized both quickly and easily using SICO Link software.
Your benefits at a glance:
| Matchcode | PA-LSH-75/165 |
| Article name | Louvre slit actuator PA-LSH-75/165 |
| Part number | M2 2485 |
| Input voltage | 24 V DC |
| Nominal current | 1.0 |
| Stroke | 165 |
| Push force | 750 |
| Pull force | 750 |
| Cut-Off | integrated electronic overload cut-off |
| IP code | IP20 |
| Switch on duration | 30 |
| Mounting way | attached |
| Weight | 1,75 |
| Housing | Aluminium profile tube, anodised E6/EV1 with integrated holder for flexible bracket system |
| Housing type | Aluminium |
| Colour | On request |
| Housing length | 544 |
| Diameter | 59 |
| Appliance class | III |
| Connection cable | SICO PLUG connection. Excluding connection cable / set. |
| Brackets included | yes |

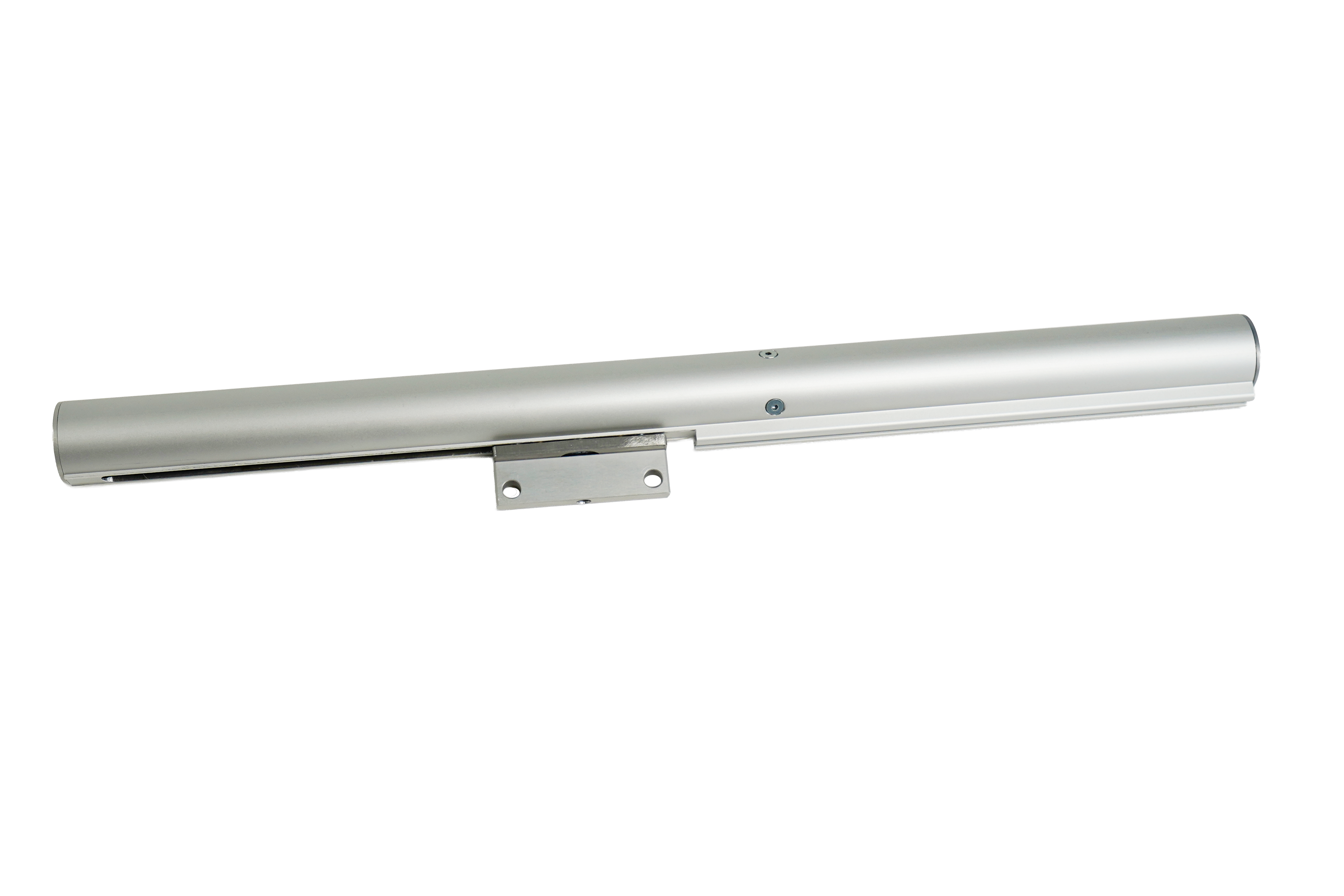

Slit actuator PA-LSH-75/165
24 V DC / 1.0 A / 750 N / 165 mm stroke
The slit actuator PA-LSH-75/165 is an electromechanical actuator for opening and closing louvre windows of the type Hahn. The electronic load cut-off with microcontroller is integrated in the actuator and thus prevents an overload in the end positions. Tested according to DIN EN 12101-2 for SHEV application with retriggering blockage.
Technical data:
Rated voltage: 24 V DC /±15%
Rated current: 1.0 A
Switch-on duration: 30% (ON: 3 min / OFF: 7 min)
Push force: 750 N
Pulling force: 750 N
Nominal locking force: 1000 N
Stroke length: 165 mm
Running speed: 7.7 mm/s
Protection class: IP20
Temperature range: -5°C to +75°C
Housing: aluminium profile tube anodized in EV1
Housing type: Aluminium
Connection: SICO-PLUG (without connection cable / set)
Dimensions (LxDxH): 523 x 36 x 63 mm
Sound level: < 70 dB (A)
Weight: 1.75 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Slit actuator PA-LSH-75/165
Article number: M2 2485
WEEE Reg. No.: DE 97535049
