| Part number | ST4 3382 |
| Input voltage | 24 V DC |
| Output voltage | 24 V DC |
Product Information / Datasheet (PDF)
The MI-100 message interface is one of the basic modules for the M-SHEV module center. The module is connected via a digital BUS. It is used to retrieve all necessary information from the peripherals.
The message interface is an optional base module of the M-SHEV and can be installed on request. It is located next to the four other components central interface, motor relay, sensor interface and the power supply in a secure sheet steel housing.
All necessary information is queried via the message interface MI. These include messages such as "Wind Rain Detector active" or "SHE triggered". Thus, the message interface offers more security in dealing with the M-SHEV module control center and its peripheral devices.
Your benefits at a glance:
| Matchcode | MI-100 |
| Article name | Message interface MI-100 |
| Part number | ST4 3382 |
| Input voltage | 24 V DC |
| Output voltage | 24 V DC |
| LED signs | LEDs on load cards: 1. green LED "AKKU" = OK (Akku exists and is loading) 2. green LED "NETZ" = mains operation further LEDs on the modules |
| IP code | IP54 |
| Weight | 0.248 |
| Housing type | |
| Colour | Blue |
| Appliance class | I |
| Environment temperature range | -5 °C - 40 °C |

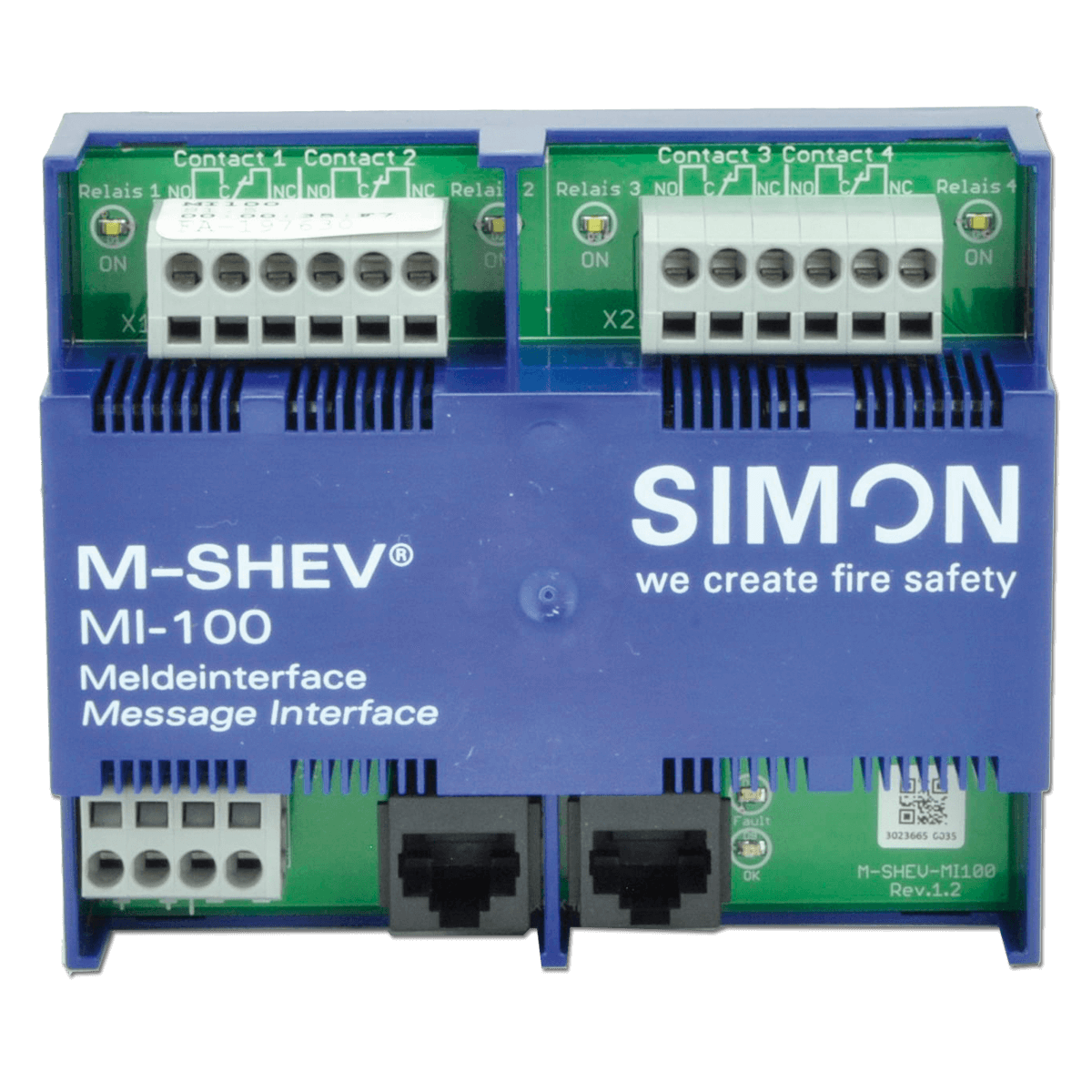

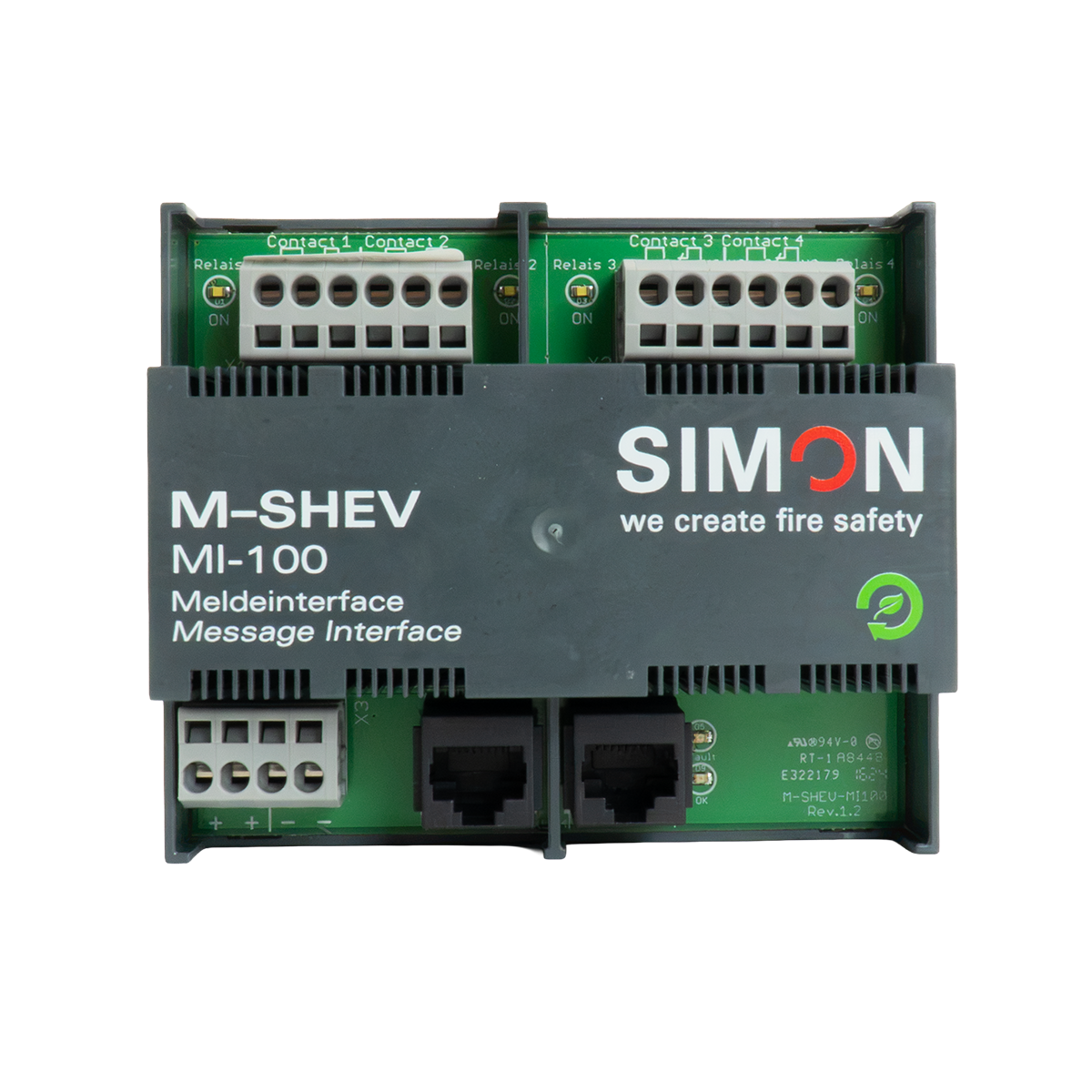

MI-100 Message interface
Provides four freely programmable, potential-free changeover contacts NO / NC. Switching capacity 30 V DC, switching current max. 6 A. Switching operations can be set via SimonLink software for defined states in direct form or via matrix switching. All states of the individual base modules and the charging circuit can be called up. MI-100 modules are independent of the number and assignment of SHEV and ventilation groups.
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: MI-100 Message interface
Article number: ST4 3382
WEEE Reg. No.: DE 97535049
