Part number | A3 3150 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = Ready |
The electric SHEV emergency button type HE 082 Orange BIOBASED is used as a main SHE button in smoke and heat extraction systems and complies with DIN 18232/2 and the LBO. In case of fire, the button controls the electrical control unit manually, whereby the flue is activated. An LED indicates the current operating state of the electrical SHEV emergency button.

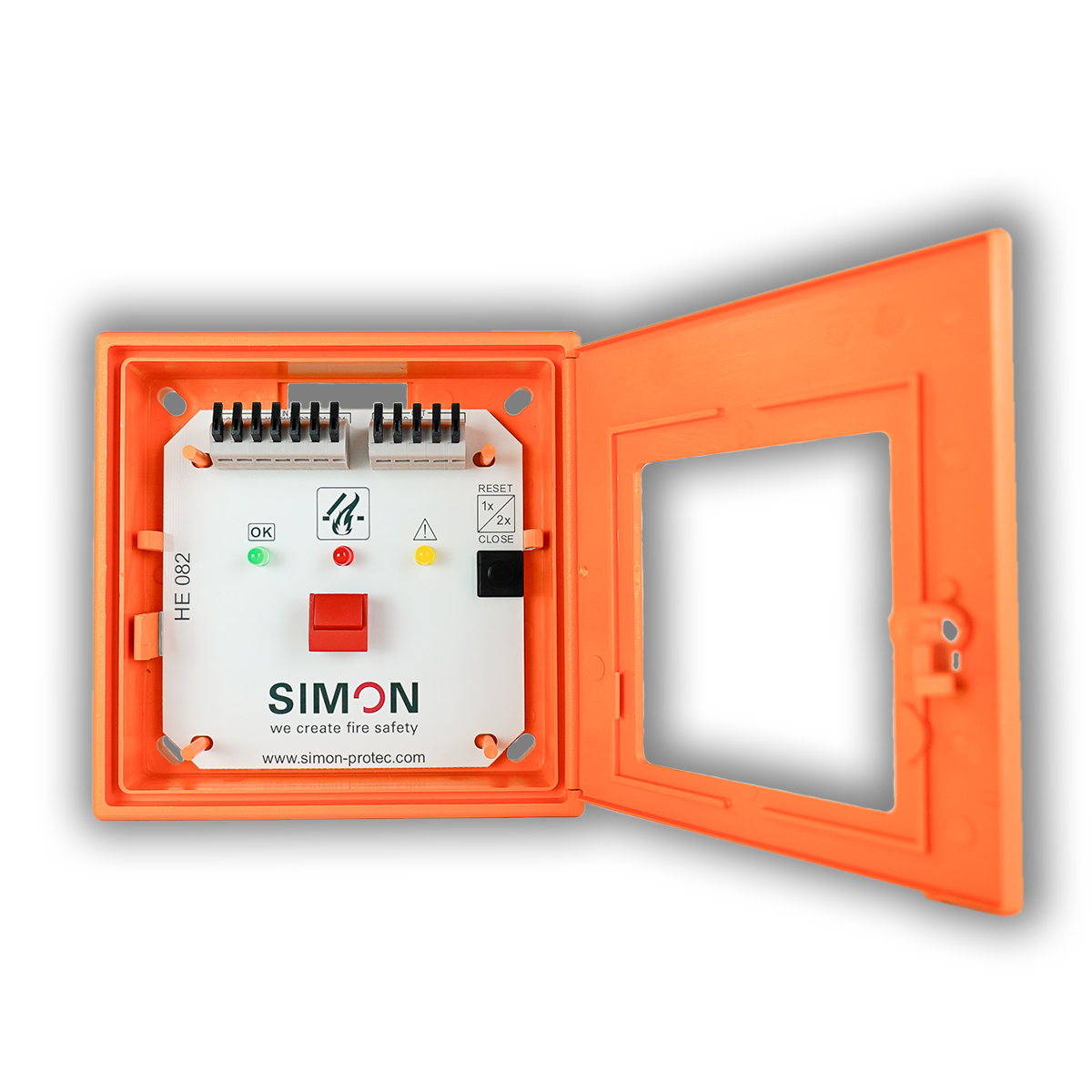

The manual release button is a main control panel with a circuit board that can be replaced. The open and close button (NO) is included. Three LED indicators for the SHEV indicate the operating status of the manual control (red = triggered, green = ready for operation, yellow = fault)

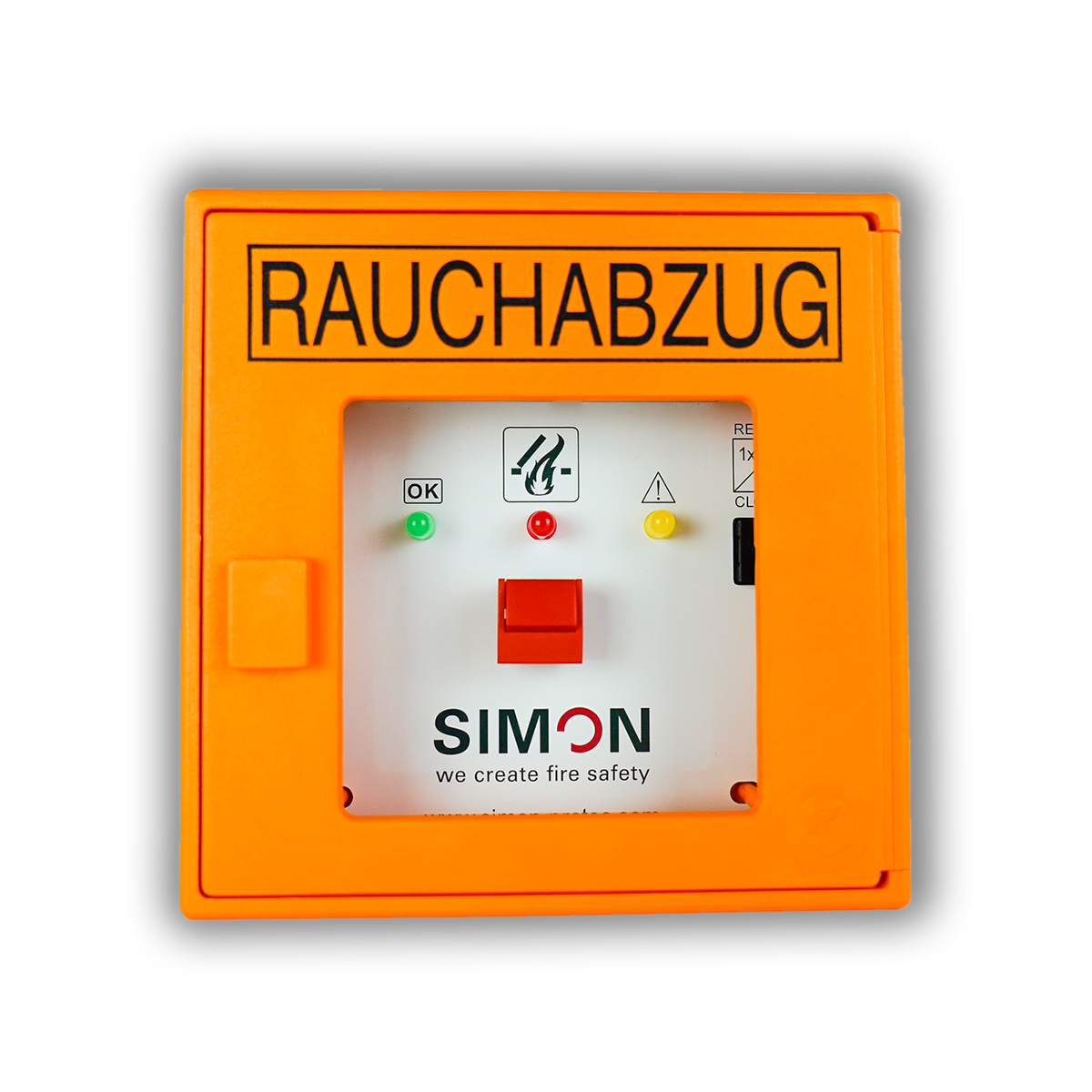

Manual control device at a glance:
Matchcode | HE-082-ORANGE-BIO |
Article name | Main SHEV button HE-082-ORANGE-BIO |
Part number | A3 3150 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = Ready |
IP code | IP40 |
Weight | 0.2 |
Housing | Surface-mounted plastic housing, optionally in flush-mounted housing with revolving door, impact glass and key |
Housing type | Biobased |
Colour | Orange (RAL 2011) |
Housing width | 125 |
Housing height | 125 |
Housing depth | 36 |
Appliance class | III |
Nominal working temperature | 20 |
Environment temperature range | -5 °C - 75 °C |
Electical manual override switch - main site HE-082 BIOBASED in orange
The electric SHEV emergency switch HE-082 as main site switch in orange is used in smoke and heat extraction systems, typ SHEV and M-SHEV. in the case of fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system. The sustainable housing is made of biobased (up to 78 %) materials.
Technical data:
Main site switch with LED signals for alarm, OK and fault. Triggering for alarm and reset.
Protection clss: IP 40
Temperatur range: -5°C - +75°C
Housing: shock-resistant housing made from BIOBASED materials with frangible element (break glass plane) and key
Coler: orange
Dimension: 125 mm x 125 mm x 63 mm
weight: 0,2 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type Electrical manual switch - main site HE-082 Bio in orange
Article number: A3 3150
WEEE Reg. No.: DE 97535049
