Part number | A3 3160 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
The electric SHEV emergency button HE 083 Orange BIOBASED is used in smoke and heat extraction systems, type SP-300 / SP-600 / M-SHEV (with SP-100). In the case of fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system.

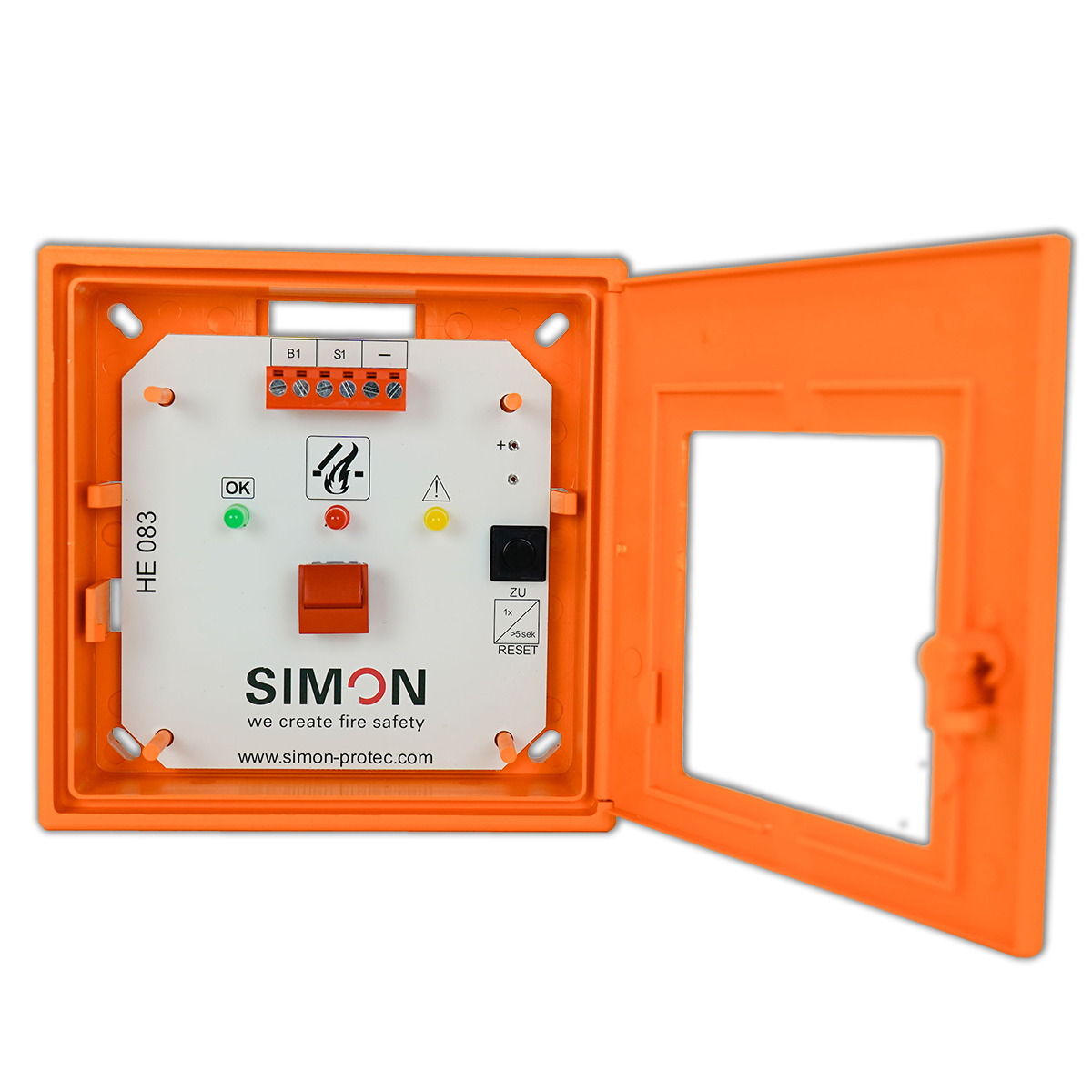

A visualization of operating states of the control unit via three LEDs is shown. Also, the board can be easily replaced with the LEDs, so that a complex assembly / disassembly of the SHEV emergency button is eliminated.
SHEV emergency button at a glance:
Matchcode | HE-083-ORANGE-BIO |
Article name | Main SHEV button HE-083-ORANGE-BIO |
Part number | A3 3160 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
IP code | IP40 |
Weight | 0.2 |
Housing | made from sunstainable housing (BioBased) |
Housing type | Biobased |
Colour | RAL 2011 |
Housing width | 125 |
Housing height | 125 |
Housing depth | 36 |
Nominal working temperature | 20 |
Environment temperature range | -5 °C - 75 °C |

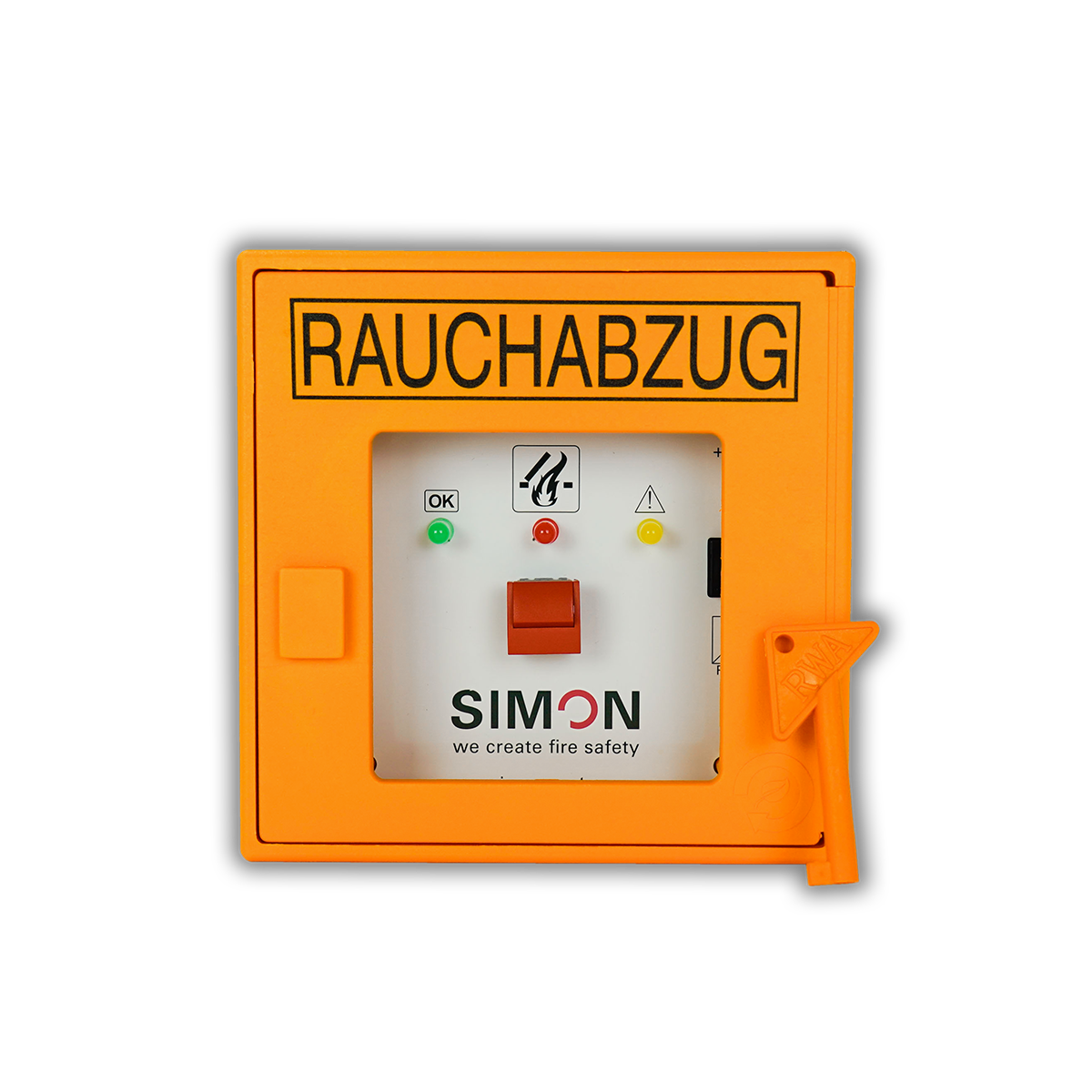

Electrical manual emergency override switch HE-083 organge BioBased
The electric SHEV emergency switch HE-083 Orange is used in smoke and heat extraction sysems, type SP-300 / SP-600 / M-SHEV (witch SP-100). In the case of fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system. The sustainable housing is made of biobase (up to 78 %) materials.
Technical data:
Main sit switch with buzzer and LED signals for alarm, OK and fault. Triggering for alarm and reset.
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant housing made from BIOBASED materials witch frangible element (break glass plane) and key
Color: orange
Dimensions: 125 mm x 125 mm x 36 mm
Weight: 0,2 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Typ: Electrical manual emergency override switch HE-083 bio in orange
Article number: A3 3160
WEEE Reg. No.: DE 97535049
