| Part number | A3 2131 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV ON) Yellow = breakdown Green = ready |
Product Information / Datasheet (PDF)
The electric main SHEV-button type HE 080 Yellow is used as a main SHEV-button, in accordance with DIN 18232/2 and in the sense of the LBO, in smoke and heat extraction systems. The heat and smoke extraction button controls the respective electrical control device manually in case of fire and activates the smoke outlet.
The push-button is supplied with an integrated buzzer, which emits an acoustic signal in the event of an alarm or fault. It is possible to reset the signal with the mute button.
Manual control unit at a glance:
| Matchcode | HE 080 Yellow |
| Article name | Main SHEV button type HE 080 Yellow |
| Part number | A3 2131 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV ON) Yellow = breakdown Green = ready |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Surface-mounted plastic housing, optionally in flush-mounted housing with rotating door, impact glass and key |
| Housing type | |
| Colour | RAL 1004 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Appliance class | III |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |

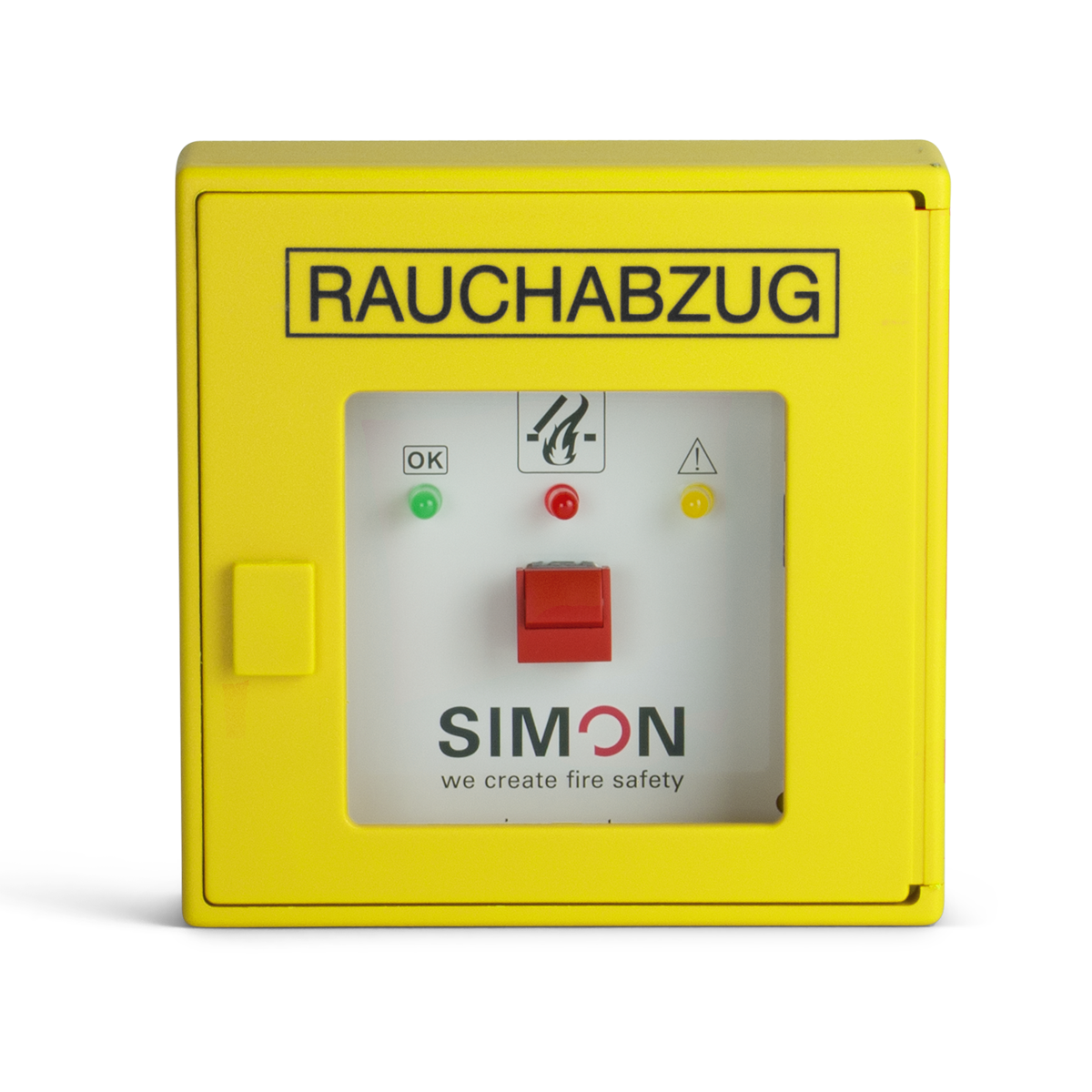

Electrical manual emergency override switch HE-080 yellow
The HE 080 yellow is a main SHEV-button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9), which is equipped with an exchangeable board - including "open" button and "CLOSE" button (NO). A total of three LED indicators for SHEV - "triggered" = red, "ready for operation" = green and "fault" = yellow were installed in the HE 080 yellow (according to the VdS guideline 2592 and in the sense of the MBO). In case of tripping or fault, a buzzer will sound. The mute button is included with the electrical main SHEV-button.
The HE 080 is available in shock-resistant plastic housing (ABS) in accordance with DIN 14655 in RAL color 1004 - complete with thin glass pane and key as a unit.
Dimensions: 125 * 125 * 36 mm (H * W * D)
