Part number | A3 2141 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV ON) Yellow = breakdown Green = ready |

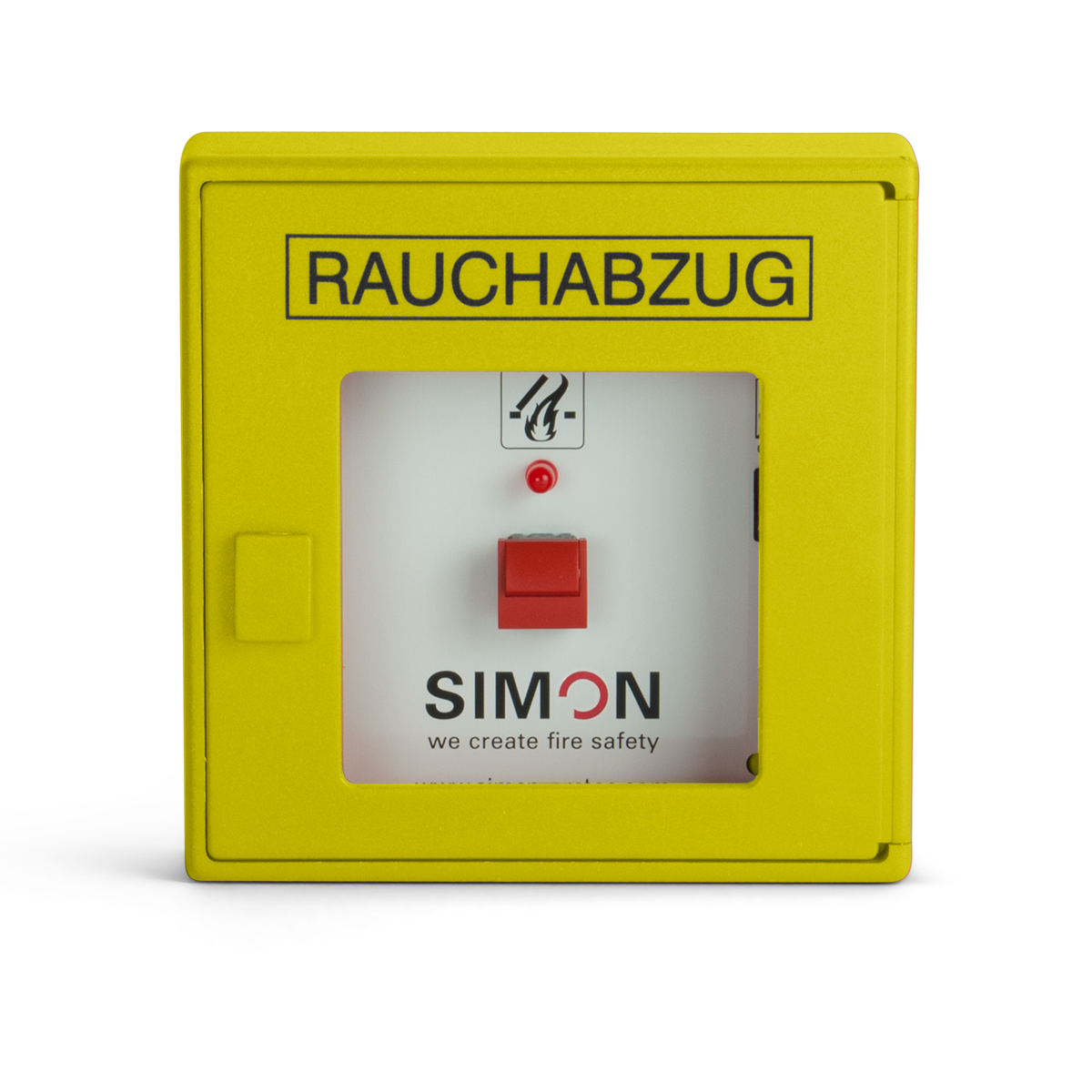

The electric SHEV emergency button HE 081 Yellow is used to control the respective control unit by manual release in the event of a fire, thus activating the smoke extraction.
An LED (RED = SHEV OPEN) reliably indicates the operating states of the control unit. In the event of a trip, the SHEV emergency button can be reset to the initial state by means of the reset button.
Manual control device at a glance:
Matchcode | HE 081 Yellow |
Article name | Secondary SHEV button type HE 081 Yellow |
Part number | A3 2141 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV ON) Yellow = breakdown Green = ready |
IP code | IP40 |
Weight | 0.2 |
Housing | Surface-mounted plastic housing, optionally in flush-mounted housing with revolving door, impact glass and key |
Housing type | |
Colour | Yellow (RAL 1004) |
Housing width | 125 |
Housing height | 125 |
Housing depth | 36 |
Appliance class | III |
Nominal working temperature | 20 |
Environment temperature range | -5 °C - 75 °C |
Electric SHEV emergency button, HE 081 yellow
secondary SHEV button of electrical line monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested to DIN EN 12101/9), with interchangeable board, incl. "On" - button, "To" - button (NO) 24 V, 1 LED - indication for SHEV triggered (red), according to VdS guideline 2592 and in the sense of the MBO. Color RAL 1004, in impact-resistant plastic housing (ABS) according to DIN 14655, EN 54 complete with thin glass pane and key as unit.
Dimensions: 125 * 125 * 36 mm (H * W * D).
