| Part number | M2 1519 |
| Input voltage | 24 V DC |
| Nominal current | 1.6 |
| Opening angle | 125 |
| IP code | IP54 |
| Switch on duration | 30 |
Product Information / Datasheet (PDF)
Door opener with integrated electronical load cut-off, with two dry contacts (end position and e-opener feature). 24 V DC, 1.2 A, stroke 122°, 300 N push force, 50 N pull force, in aluminium housing EV 1, silicon cable 6x0,75 mm² (length 3.000 mm), including protective foil for the door.
For normal application, please use the version Folding arm² door opener PA-KL²-T-30/122deg with SICO PLUG.
| Matchcode | EA-KL²-T-30-DC |
| Article name | Folding arm² door opener EA-KL²-T-30-DC |
| Part number | M2 1519 |
| Input voltage | 24 V DC |
| Nominal current | 1.6 |
| Input voltage range | - 15 % / + 15 % |
| Ripple | 500 |
| Opening angle | 125 |
| Push force | 500 |
| Pull force | 50 |
| Classification | tested and certified according to EN 12101-2, incl. continuous operation RE 1000. |
| Cut-Off | integrated electronic overload cut-off |
| Running speed | 2 |
| IP code | IP54 |
| Switch on duration | 30 |
| Mounting way | attached |
| Weight | 4.22 |
| Housing | Aluminium housing E6 / EV1 anodized |
| Housing type | Aluminium |
| Colour | RAL & DB colors |
| Housing length | 474 |
| Housing width | 58 |
| Housing height | 118 |
| Appliance class | III |
| Connection cable | Silicone connection cable 6 x 0.75 mm², light gray, length 3,000 mm |
| Nominal working temperature | 20 |
| Environment temperature range | 0 °C - 75 °C |
| Brackets included | no |
| Part no. | Matchcode | |
|---|---|---|
| K2 1620 | K-KL²-T-MW | |
| K2 1621 | K-KL²-T-MP | |
| SD1 8522 | SICO-LINK-Adapter | |
| SD1 8525 | SICO-PLUCKER | |
| SD1 8530 | Software parameterization |
Folding arm² door opener EA-KL²-T-30-DC
24 V DC / 1.2 A / 300 N / 122° opening width
Single operation actuator

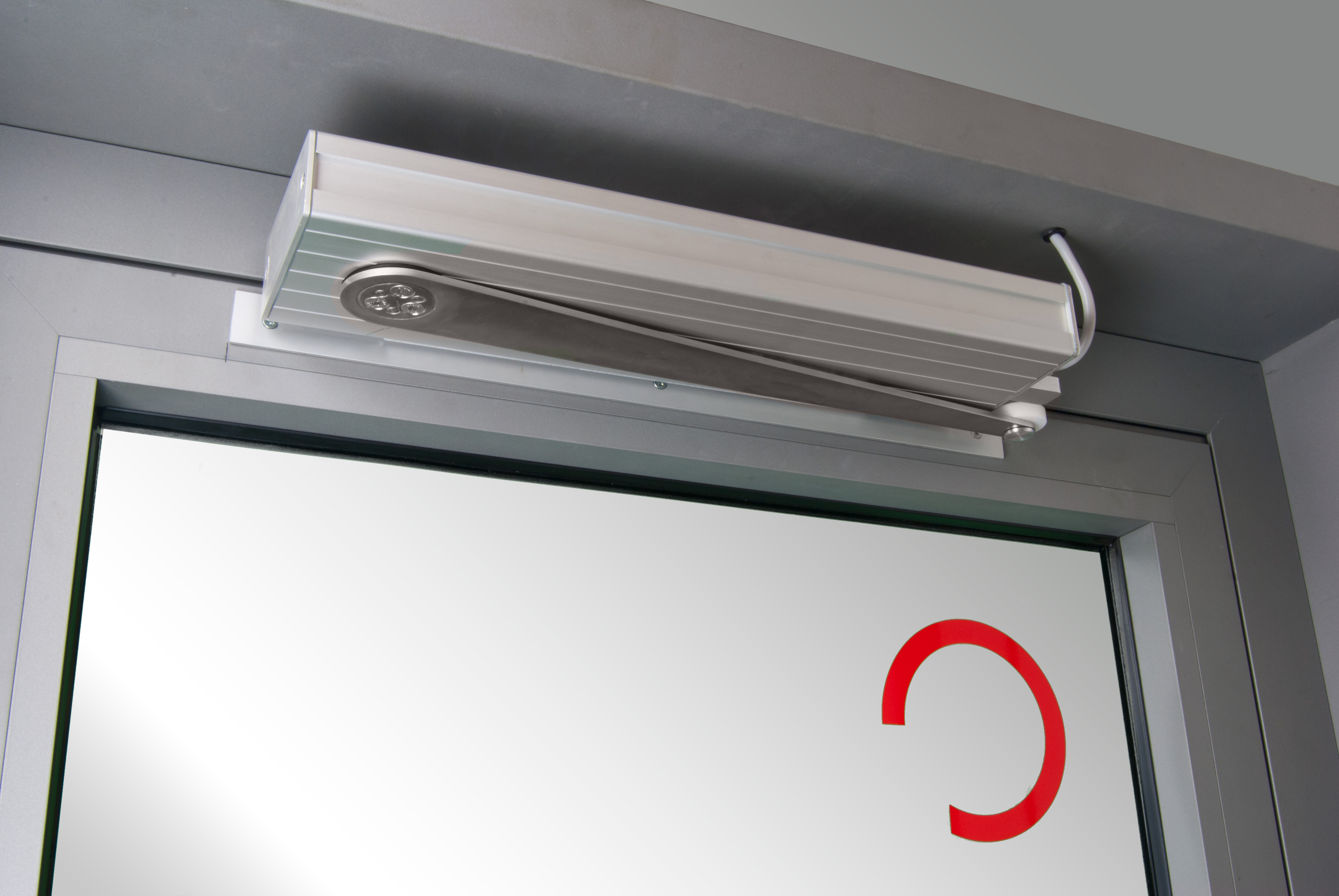

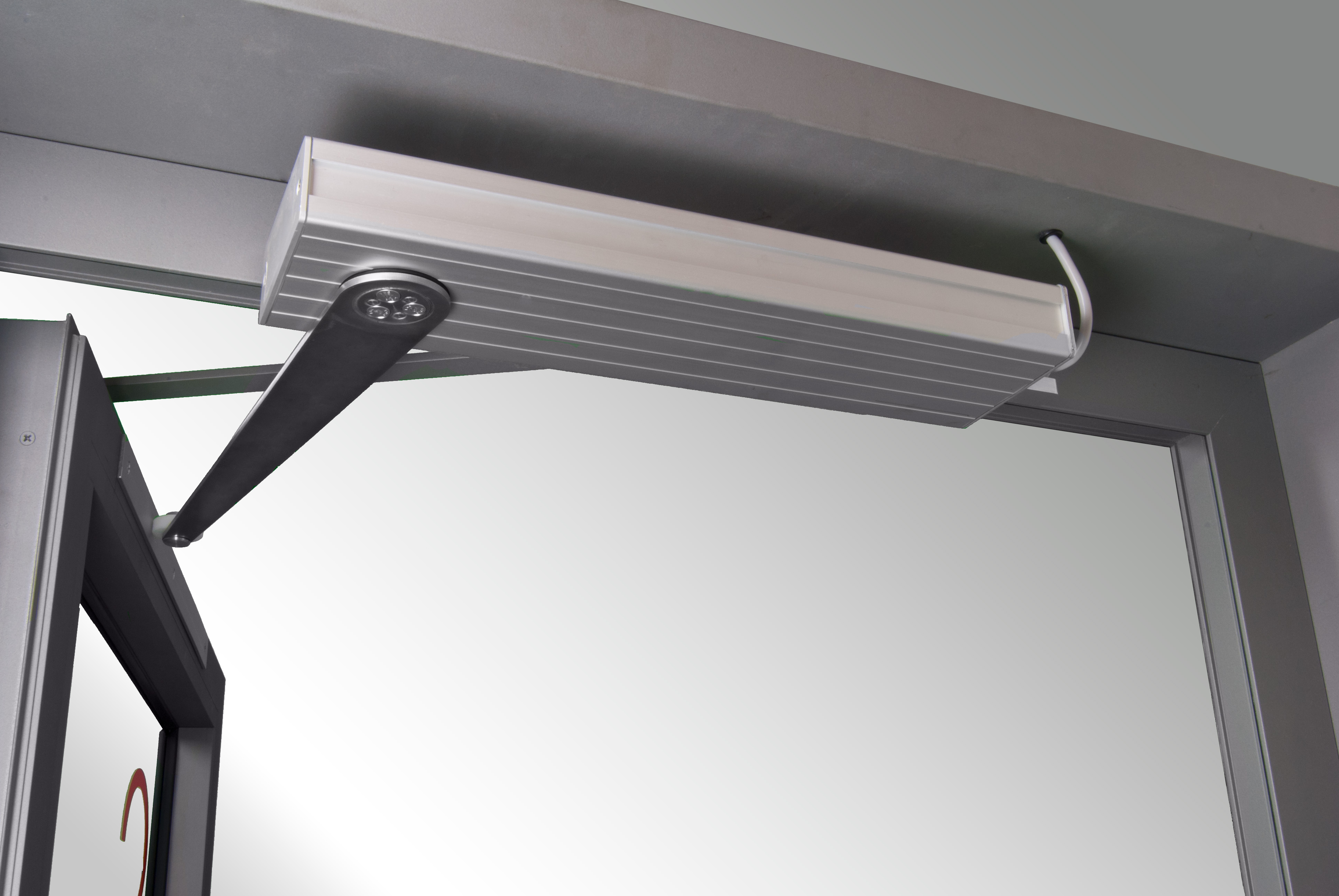

Folding Arm² EA-KL²-T Door opener as electromechanical actuator for opening doors for automated supply air for natural smoke extraction. Powerful actuator with 300 N push force via a lever arm with roller, which is not directly connected to the door leaf. Thus, there are no restrictions for manual door opening in normal operation and as an escape route. The supply air doors are to be designed self-closing with an upper door closer. Suitable for inward and outward opening doors, with bracket set (mounting bracket and mounting plate). With integrated, programmable SICO switch-off technology with microprocessor and SICO-PLUG connection plug. Work sequence control and start-up delay are freely adjustable. Connection for electric opener or motor lock available. Tested and certified for long-term performance according to DIN EN 12101-2.
Technical data:
Rated voltage: 24 V DC (- 15 % / + 15 %)
Ripple: max. 500 mV
Rated current: 1.2 A
Switch-on duration: 30 % ED S2 (ON: 3 min / OFF: 7 min)
Push force / nominal load in “OPEN”: 300 N
Nominal load in “CLOSE”: 50 N
Opening width: 122°
Running speed: 2 °/s
Opening time: within 60 seconds
Protection class: IP54 (IP65 on request)
Temperature range: 0°C to +75°C
Housing: Aluminium profile housing E6 / EV1 anodized
Lever: one-arm, stainless steel, with roller mechanism
Connection: SICO-PLUG (without connection cable / set)
Cut-off: Integrated overload cut-off with microprocessor
Volt-free contact (freely adjustable)
Dimensions (LxWxH): 474 x 58 x 118 mm
Weight: 4.16 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Folding arm² door opener EA-KL²-T-30-DC
Article number: M2 1519
WEEE Reg. No.: DE 97535049
