| Part number | A3 2151 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
Product Information / Datasheet (PDF)
The electric SHEV emergency button type HE 082 Yellow is used as a main SHEV button (according to DIN 18232/2 and in the sense of the LBO) in smoke and heat extraction systems. In case of fire, the button is used to control the electrical control unit manually. This activates the smoke extraction. The operating state of the electrical SHEV emergency button is displayed via an LED.
The manual control is equipped with a replaceable circuit board. On this board there are three LEDs which signal the operating state of the manual control (red = triggered, green = ready for operation, yellow = fault).
Manual control unit at a glance:
| Matchcode | HE 082 Yellow |
| Article name | Main SHEV button type HE 082 Yellow |
| Part number | A3 2151 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Surface-mounted plastic housing, optionally in flush-mounted housing with revolving door, impact glass and key |
| Housing type | |
| Colour | RAL 1004 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Appliance class | III |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |

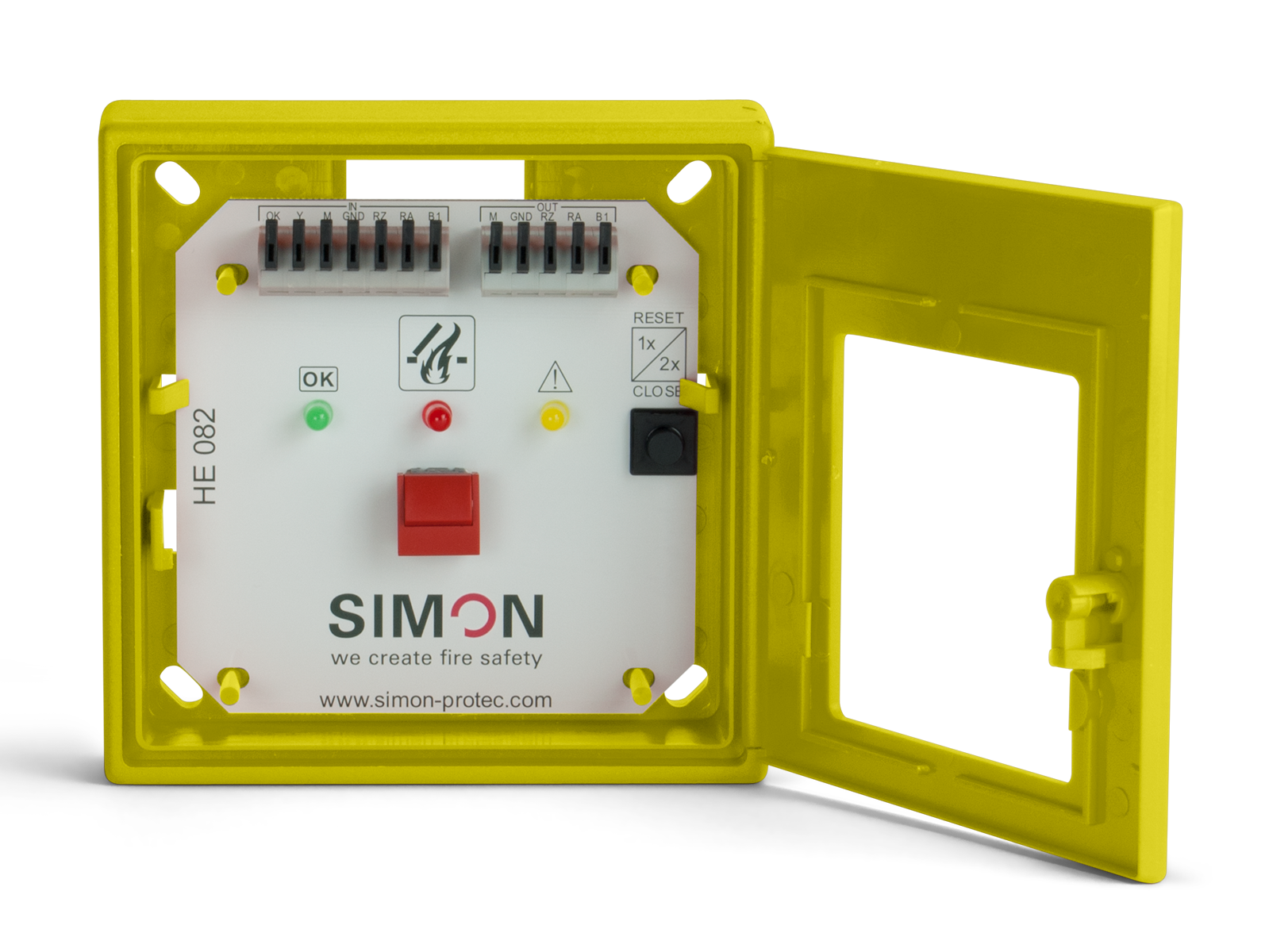

Electric SHEV emergency button, HE 082 yellow
The HE 082 yellow is a main SHEV button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9) with a replaceable board. The "UP" button and the "CLOSE" button (NO contact) are included.
There are three LED indicators for SHEV on the electric hand control HE 082 Yellow: triggered (red), ready for operation (green) and fault (yellow) - in accordance with VdS guideline 2592 and in the sense of the MBO.
The HE 082 yellow is available in the RAL color 1004 (according to VdS 2592) in a shock-resistant plastic housing (ABS) according to DIN 14655, EN 54, complete with a thin-glass pane and key as a unit.
Dimensions: 125 * 125 * 36 mm (H * W * D).
