| Part number | A3 2170 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
Product Information / Datasheet (PDF)
The electrical SHEV emergency button HE 086 Orange controls the respective electrical control unit in the case of fire in smoke and heat extraction systems. This activates the heat and smoke extraction.
In an aluminum housing there is a board with an LED display (red = SHEV OPEN) - more stability with optical demand. This LED display visualizes the operating state of the control unit.
Manual SHEV emergency button at a glance:

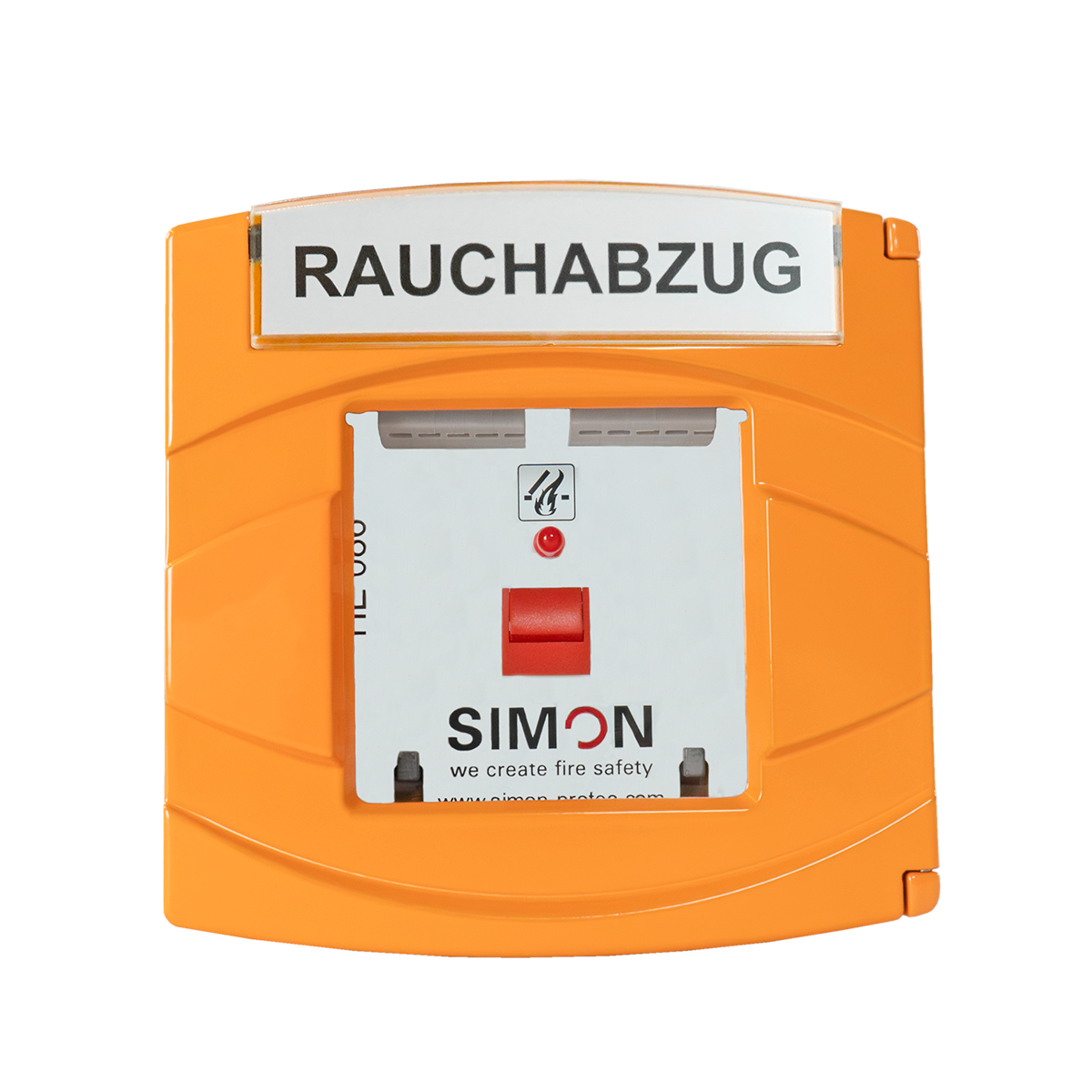

| Matchcode | HE 086 Orange |
| Article name | Secondary SHEV button type HE 086 Orange |
| Part number | A3 2170 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
| IP code | IP40 |
| Weight | 0.45 |
| Housing | die-cast aluminum housing |
| Housing type | Aluminium |
| Colour | RAL 2011 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 34 |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
Electrical manual emergency override switch HE-086
The electrical manual push-button type HE 086 are used as auxiliary control unit in smoke and heat extraction systems, respectively for smoke and fire curtains, and serve for the manual triggering of a SHEV system in case of fire. It shows additionally the condition of the control system.
Technical data:
Rated voltage range: 17.5 V DC to 29 V DC
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant aluminum housing with frangible element (break glass plane) and key
Colors: orange, yellow, grey
Dimensions: 125 x 125 x 34 mm
Weight: 0,45 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Electrical manual emergency override switch HE-086
WEEE Reg. No.: DE 97535049
