| Part number | A3 2177 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
Product Information / Datasheet (PDF)

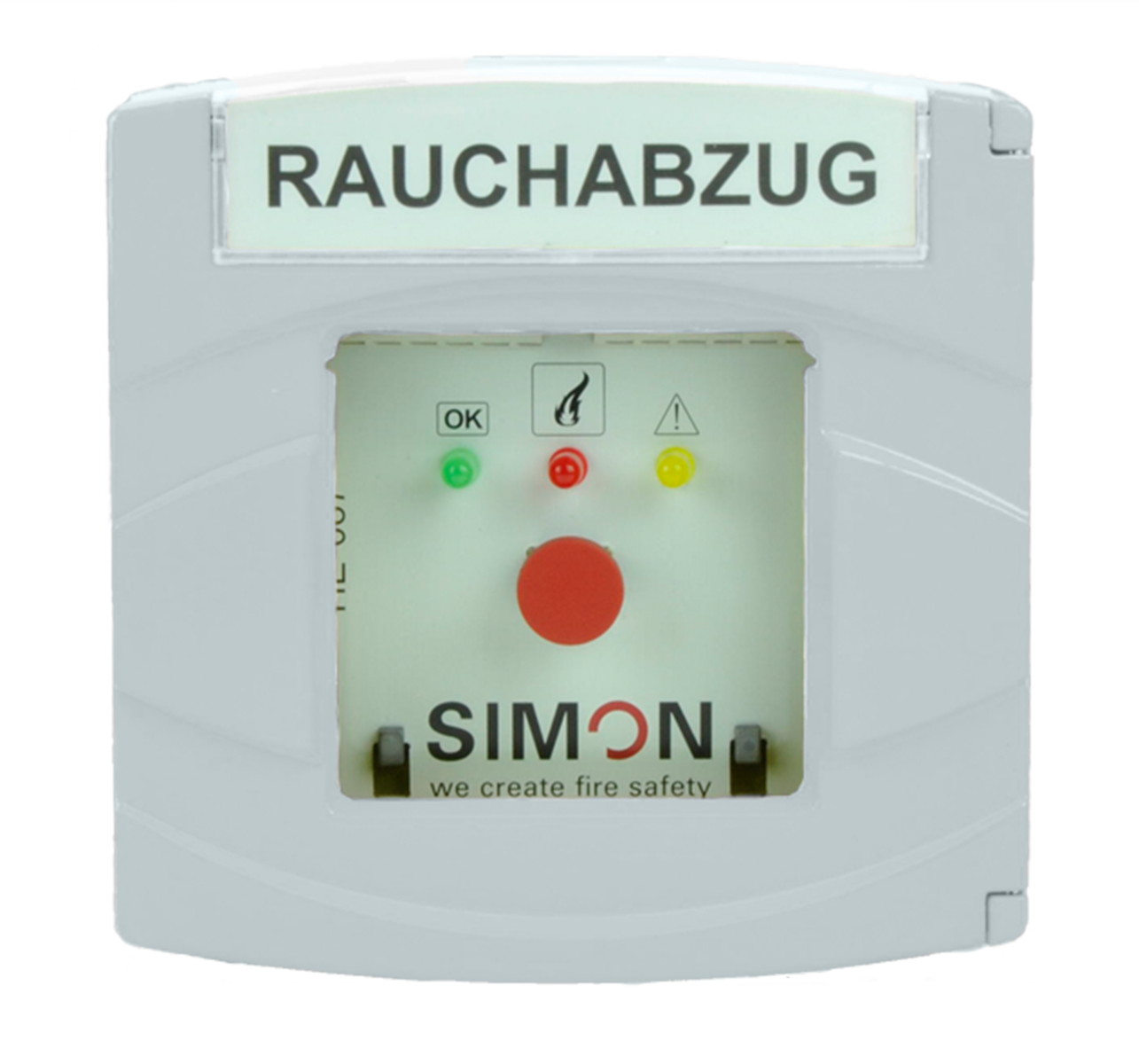

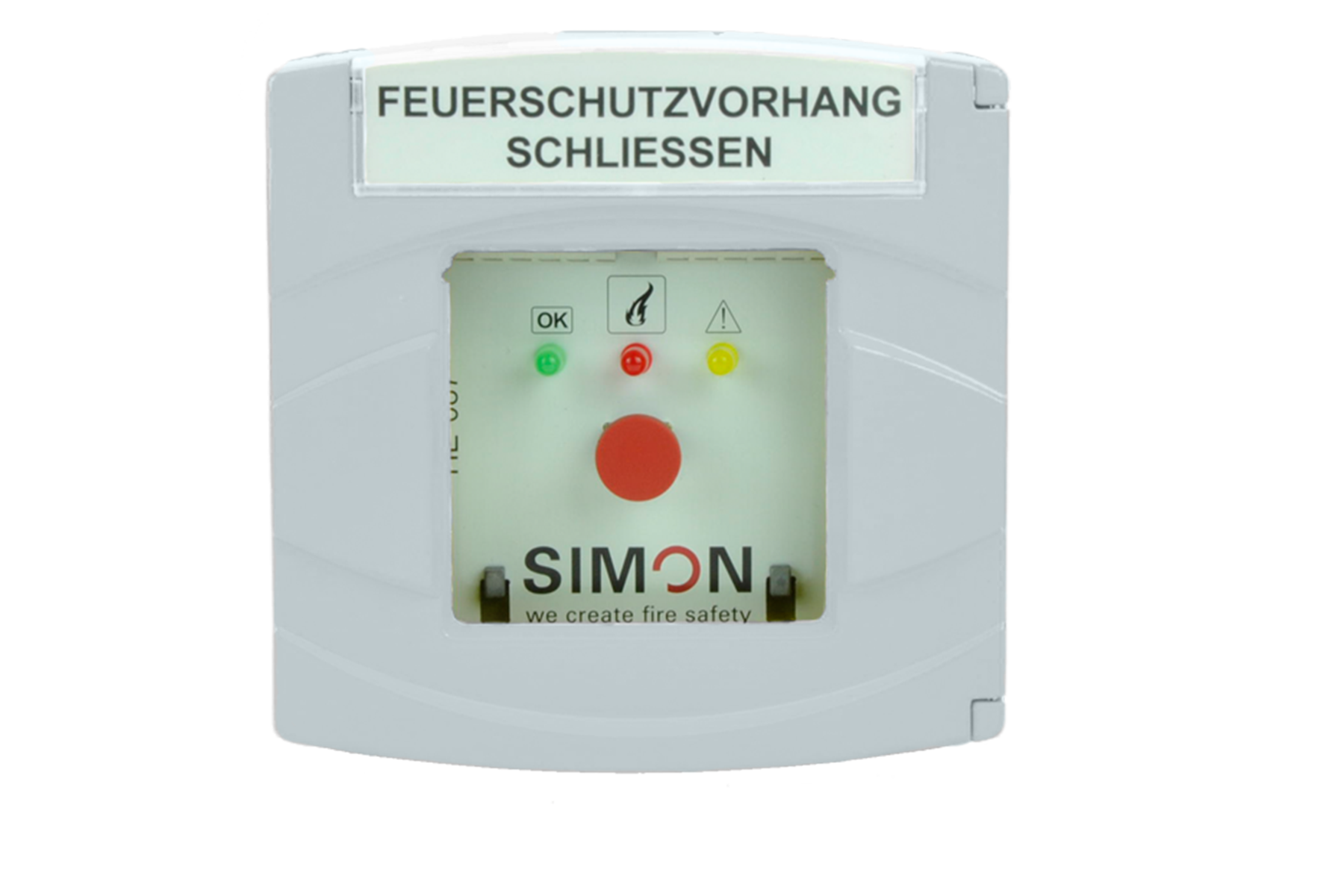

The He 087 Grey is used as an electrical SHEV emergency button for smoke and fire curtains. It complies with DIN 18232/2 and the LBO. The button controls the electrical control unit manually in case of fire, whereby the smoke extraction is activated.
Equipped with a transfer contact, the manual control offers a high degree of flexibility. This flexibility continues in the changeable labeling field. Attached are forms for SHE and textile fire protection in German and English as well as a blank sign for your own labeling options.
LEDs indicate the current operating state of the electrical control unit. In addition, the board is interchangeable. A complex assembly / disassembly is therefore superfluous.
SHEV emergency button at a glance:
Attention! When using the HE-87 on the RZ-24 arrest unit (such as FireScreen curtains), the FS-100 Intermediate Board must be used. This is to be ordered separately.
| Matchcode | HE 087 grey |
| Article name | Main SHEV button type HE 087 Grey |
| Part number | A3 2177 |
| Input voltage | 24 V DC |
| LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
| IP code | IP40 |
| Weight | 0.45 |
| Housing | die-cast aluminum housing |
| Housing type | Aluminium |
| Colour | Grey (RAL 7035) |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 34 |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
Electrical manual emergency override switch HE-087
The electrical manual push-button type HE 087 are used as main emergency button in smoke and heat extraction systems, respectively for smoke and fire curtains, and serve for the manual triggering of a SHEV system in case of fire. It shows additionally the condition of the control system.
Technical data:
Rated voltage range: 17.5 V DC to 29 V DC
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant aluminum housing with frangible element (break glass plane) and key
Colors: orange, yellow, grey
Dimensions: 125 x 125 x 34 mm
Weight: 0,45 kg
Manufacturer:
SIMON PROtec Systems GmbH
Type: Electrical manual emergency override switch HE-087
