The accessories for the electrical emergency button include, among other things, the circuit boards for the electrical emergency buttons HE and FTZ and the empty housing for HE and FTZ. Spare slices for FTZ, FTZ / UP and HE can also be found here.
Matchcode | Zubehör Elektrische Handansteuereinrichtung |
Product name | Accessories Emergency Override Switches |
Features | SHEV VENT |
Housing | gear rack housing: anodized aluminium E6/EV1, grey, actuators housing: plastic, stroke + 220 mm x 54 x 120 mm |
Part no. | Matchcode | |
---|---|---|
A3 10065 | HE 083 | |
A3 3005 | HE-08x Orange-bio |

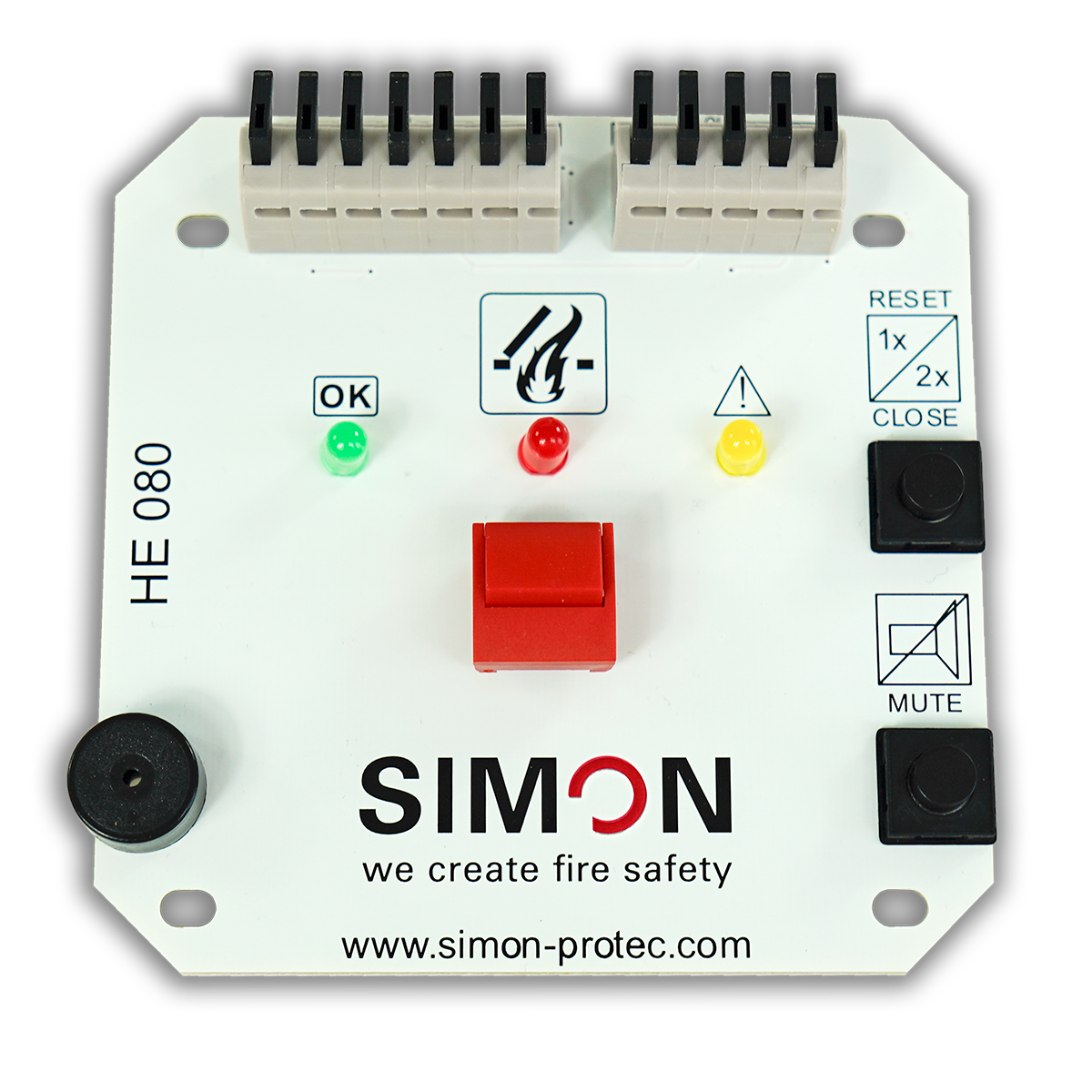

circuit boards for HE/FTZ | ||
Part no. | Matchcode | |
---|---|---|
A3 10035 | HE 080 | |
A3 10045 | HE 081 | |
A3 10055 | HE 082 |

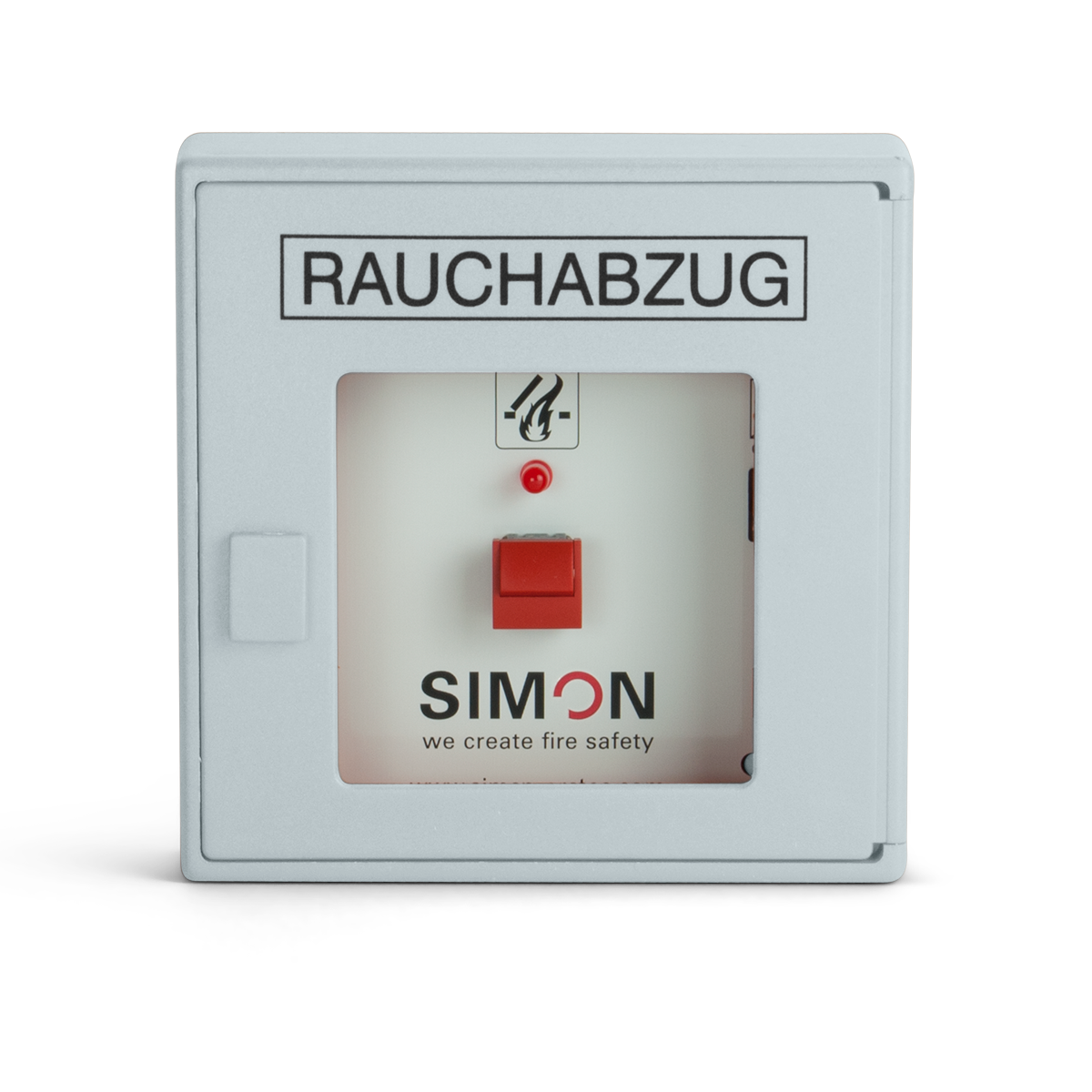

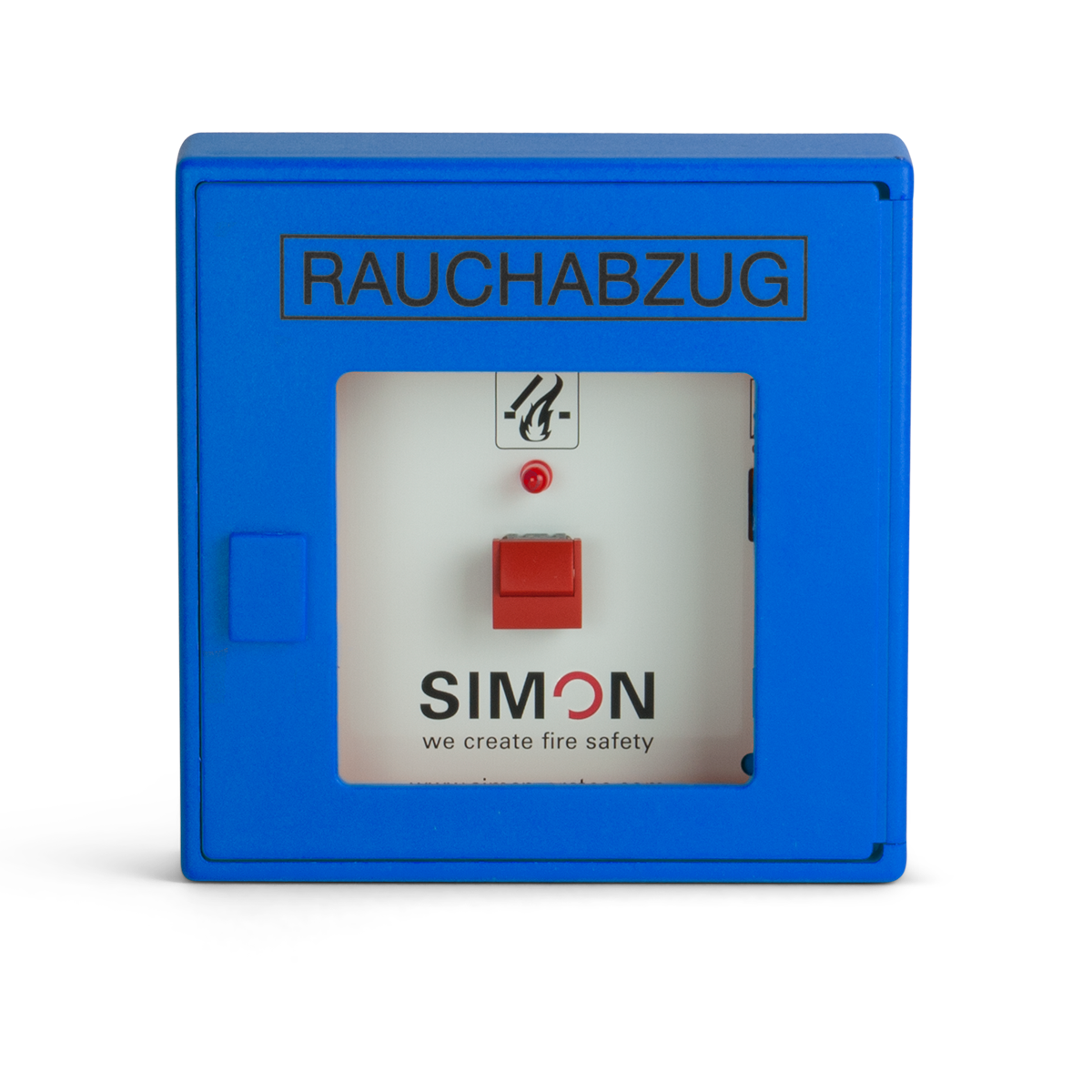

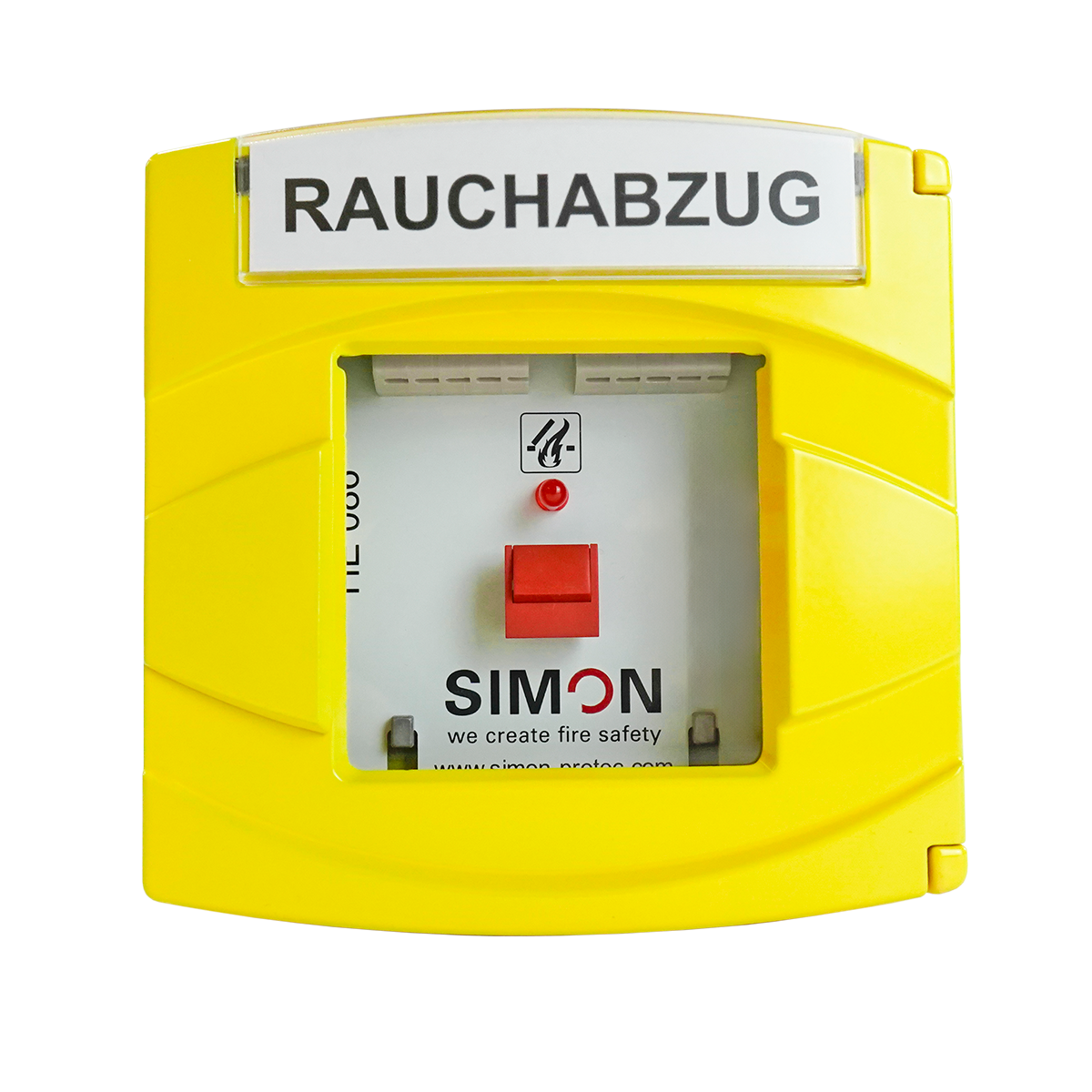

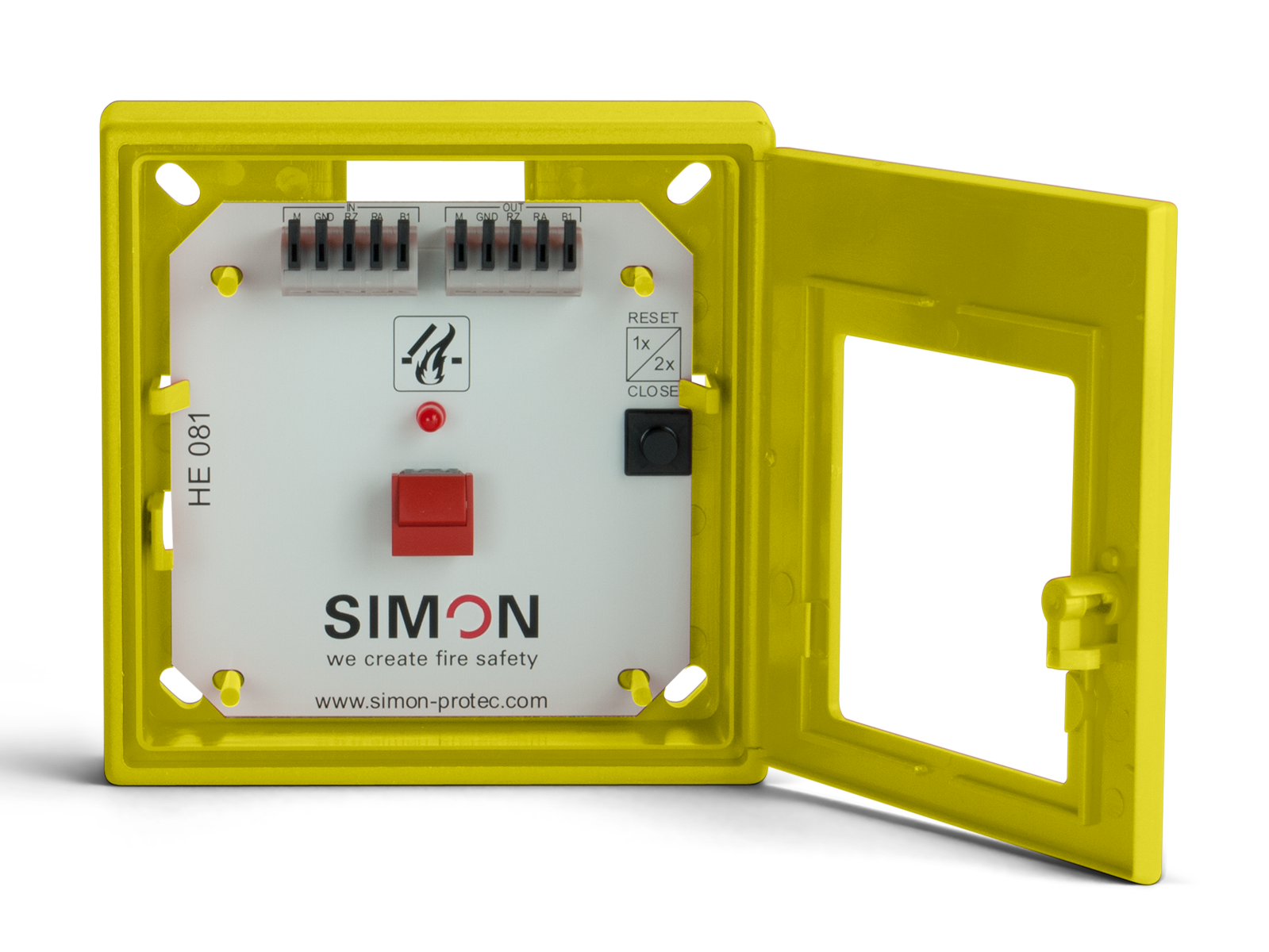

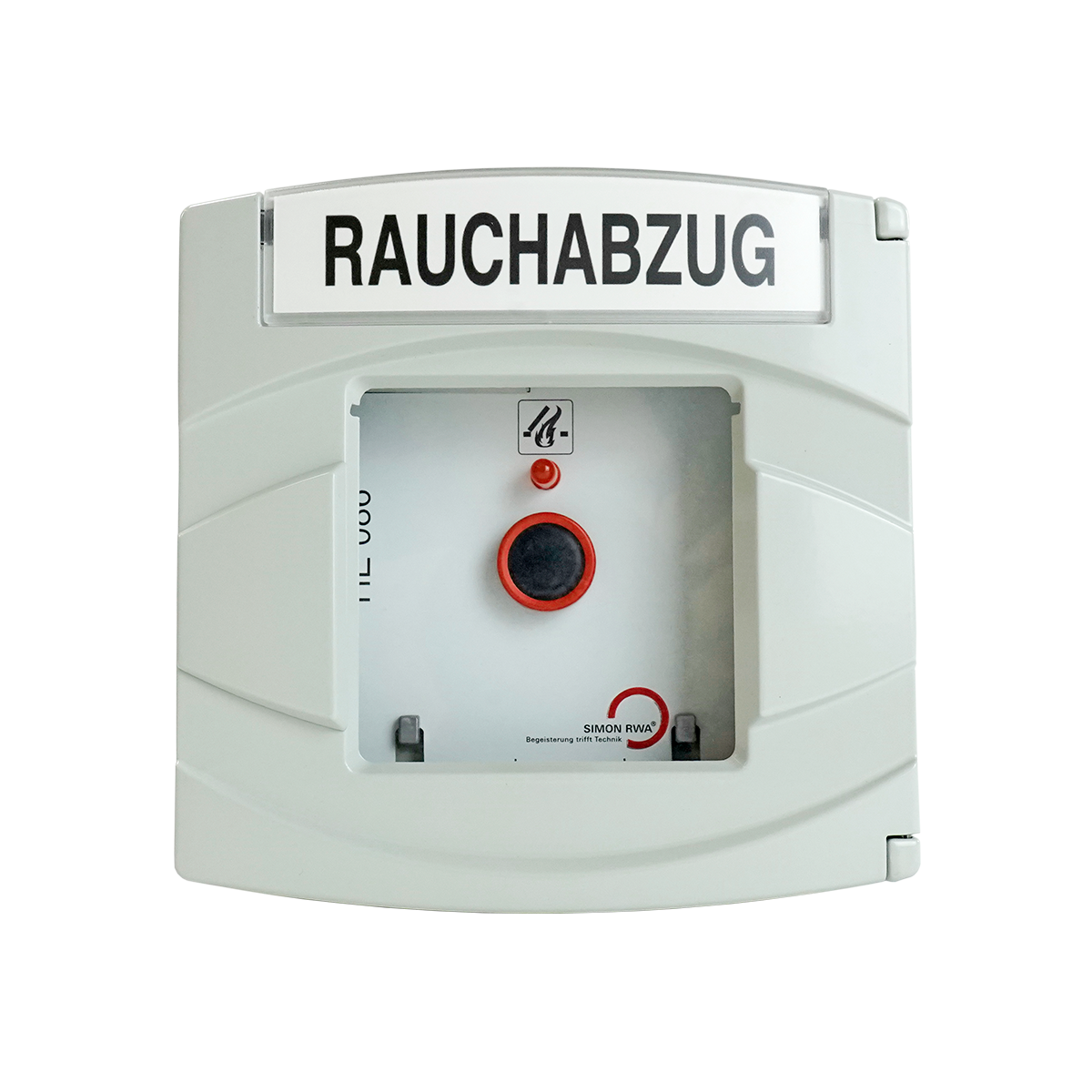

Housing for HE and FTZ | ||
Part no. | Matchcode | |
---|---|---|
A3 2001 A | HE 07X/-08X Yellow | |
A3 2002 A | HE 07X-/08X Blue | |
A3 2003 A | HE 07X/-08X Grey |
Spare key | ||
Part no. | Matchcode | |
---|---|---|
E 10019 | DINSCHL |

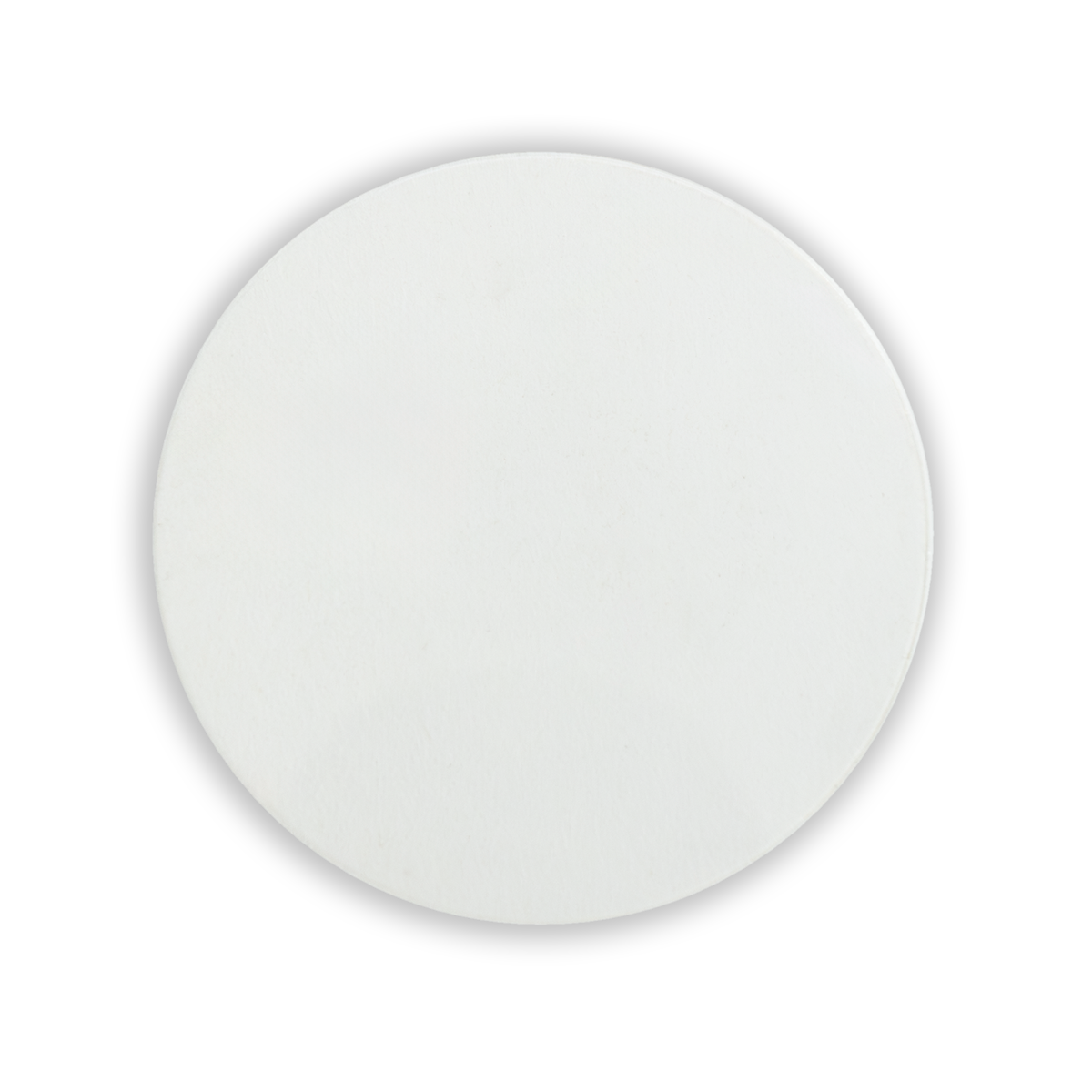

Spare slices | ||
Part no. | Matchcode | |
---|---|---|
E 10014 | DINS | |
E 10017 | SCHEIBE/RUND |
