Part number | A3 2132 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV ON) yellow = breakdown Green = ready |
The electrical emergency SHEV-button type HE 080 Gray is used as a main SHEV-button (in accordance with DIN 18232/2 and in the sense of the LBO) in smoke and heat extraction systems. In case of fire, the heat and smoke control button controls the respective electrical control unit manually and activated in this way the smoke extraction.
The heat and smoke detector button is equipped with an integrated buzzer, which emits an acoustic signal in the event of an alarm or fault. The signal can be reset with the mute button.
Emergency SHEV-button at a glance:
Matchcode | HE 080 Grey |
Article name | Main SHEV button type HE 080 Grey |
Part number | A3 2132 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV ON) yellow = breakdown Green = ready |
IP code | IP40 |
Weight | 0.2 |
Housing | Surface-mounted plastic housing, optionally in flush-mounted housing with rotating door, impact glass and key |
Housing type | |
Colour | RAL 7035 |
Housing width | 125 |
Housing height | 125 |
Housing depth | 36 |
Appliance class | III |
Nominal working temperature | 20 |
Environment temperature range | -5 °C - 75 °C |
Part no. | Matchcode | |
---|---|---|
A3 2003 A | HE 07X/-08X Grey | |
E 10019 | DINSCHL |

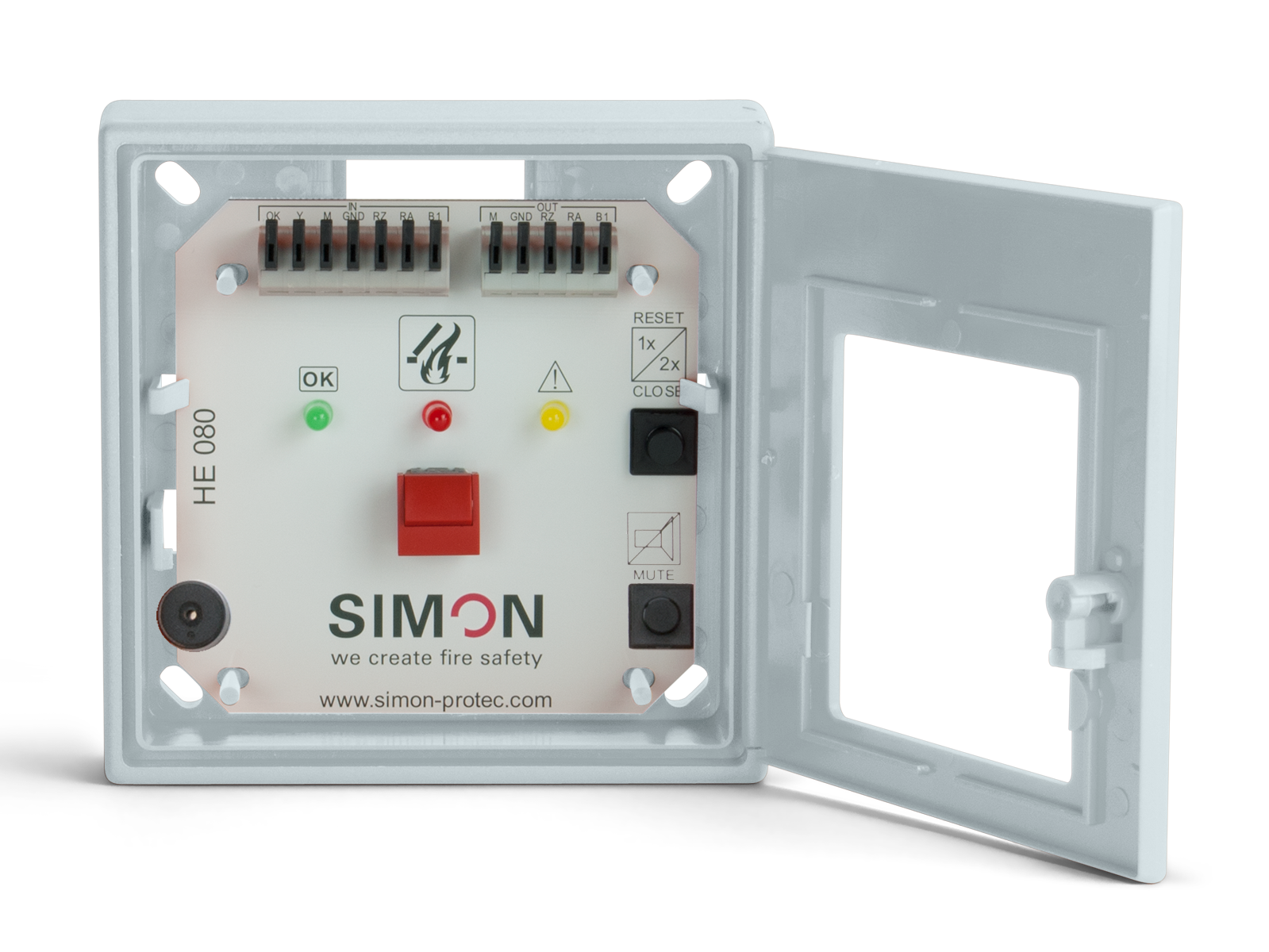

Electrical manual emergency override switch HE-080 grey
The HE 080 grey is a main SHEV-button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9). The board can be replaced as required. The "UP" and "CLOSE" buttons are included.
Three LED indicators for SHEV were installed at HE 080 Grey (according to the VdS guideline 2592 and in the sense of the MBO): "triggered" = red, "ready for operation" = green and "fault" = yellow. In the event of a fault or tripping, a buzzer sounds, which can be eliminated with the included mute key.
The HE 080 is available in shock-resistant plastic housing (ABS) according to DIN 14655 in RAL color 7035; complete with thin glass disc and key as a unit.
Dimensions: 125 * 125 * 36 mm (H * W * D)
