Part number | A3 2152 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
The electric SHEV emergency button type HE 082 Gray is used as a main SHEV button in smoke and heat extraction systems (according to DIN 18232/2 and in the sense of the LBO). In the event of a fire, the smoke and heat vent button will manually control the electrical control unit, thereby activating the smoke exhaust system. Via an LED, the operating state of the electrical SHEV emergency button is displayed.
The SHEV emergency button is equipped with a circuit board that can be replaced. There are three LEDs on the board to indicate the operating states (red = triggered, green = ready for operation, yellow = fault).
SHEV emergency button at a glance:
Matchcode | HE 082 Blau |
Article name | Main SHEV button type HE 082 grey |
Part number | A3 2152 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV OPEN) Yellow = breakdown Green = ready |
IP code | IP40 |
Weight | 0.2 |
Housing | Surface-mounted plastic housing, optionally in flush-mounted housing with revolving door, impact glass and key |
Housing type | |
Colour | Gray (RAL 7035) |
Housing width | 125 |
Housing height | 125 |
Housing depth | 36 |
Appliance class | III |
Nominal working temperature | 20 |
Environment temperature range | -5 °C - 75 °C |

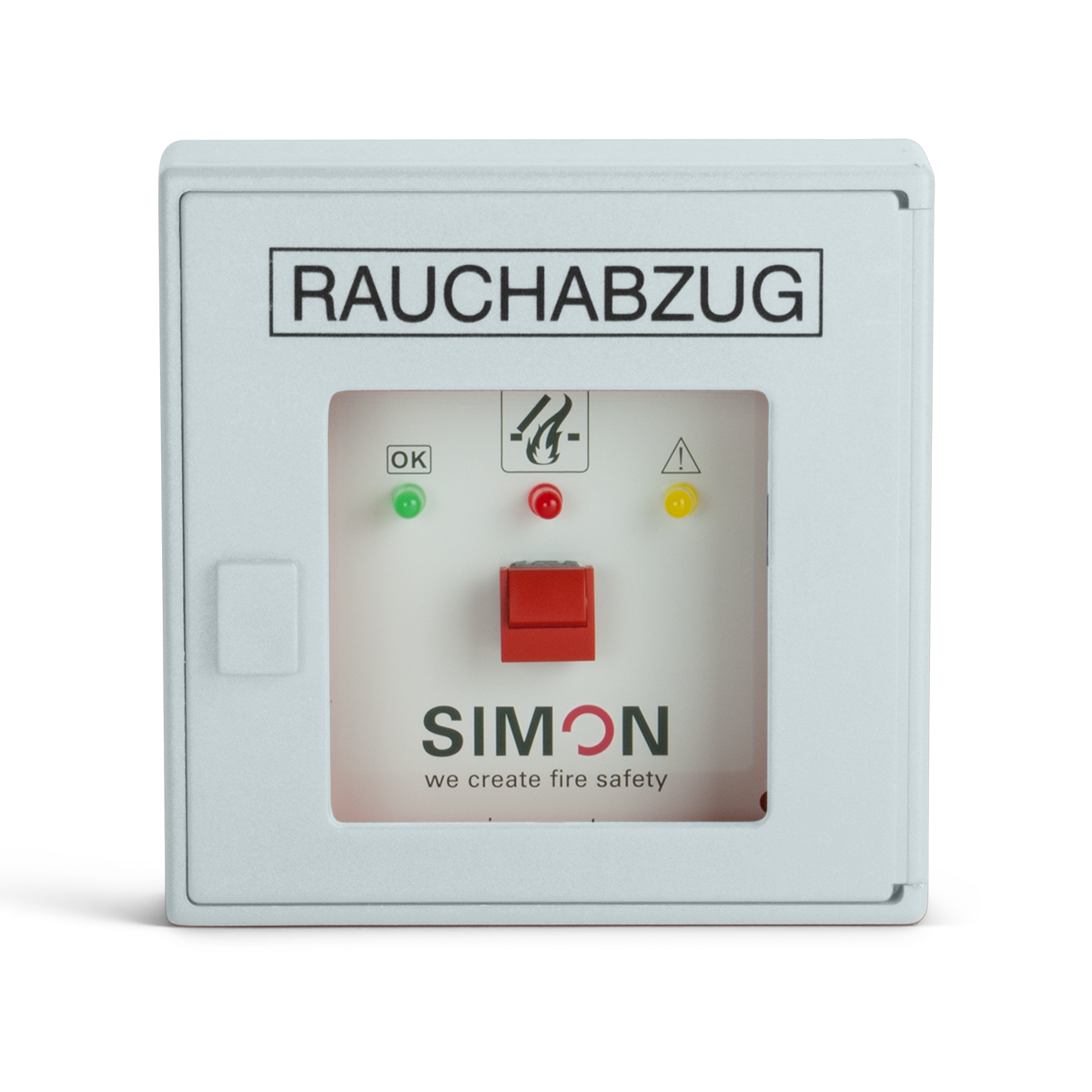

Electric SHEV emergency button, HE 082 Grey
The HE 082 Gray is a main SHEV button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9), whose board is interchangeable. "UP" button and "CLOSE" button (NO) are included.
Three LED indicators for SHEV on the HE 082 Gray indicate the operating status of the SHEV emergency button: triggered (red), ready for operation (green) and fault (yellow) - according to VdS guideline 2592 and in the sense of the MBO.
The electrical SHEV emergency button HE 082 Gray is available in RAL color 7035 (according to VdS 2592) in a shock-proof housing made of plastic (ABS) according to DIN 14655, EN 54, complete with thin glass pane and key as one unit.
Dimensions: 125 * 125 * 36 mm (H * W * D).
