| Part number | ST4 3460 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 12 |
| SHE Groups | 1 |
| Ventilation groups | 1 |
Product Information / Datasheet (PDF)

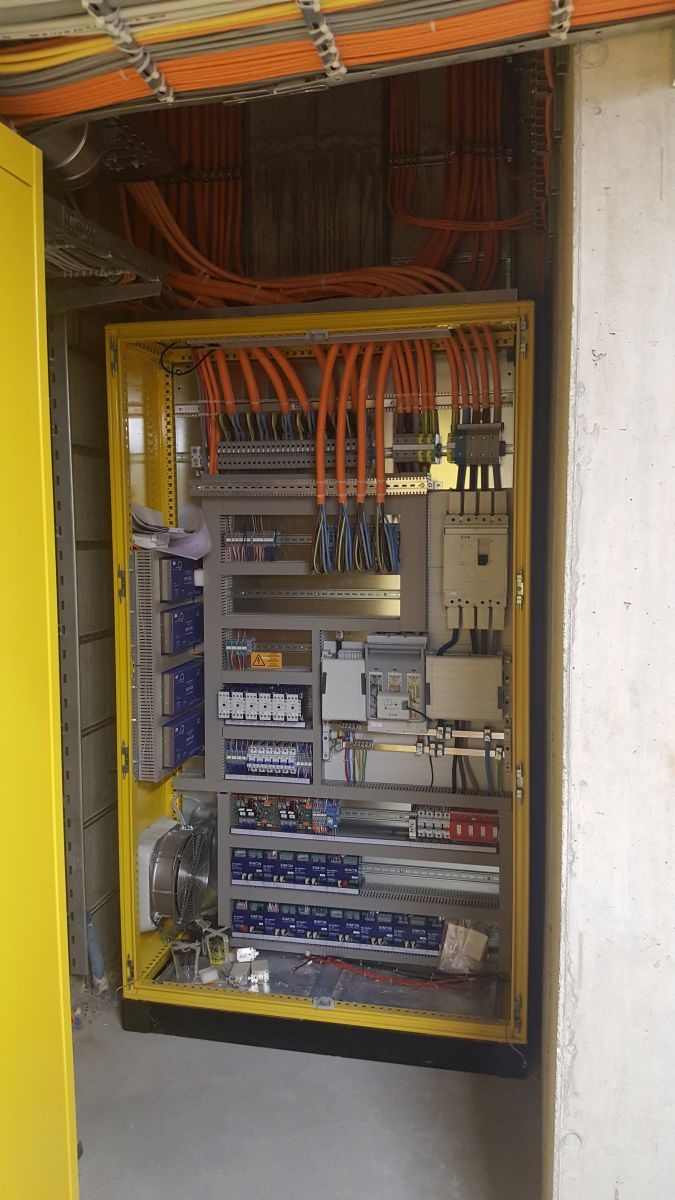

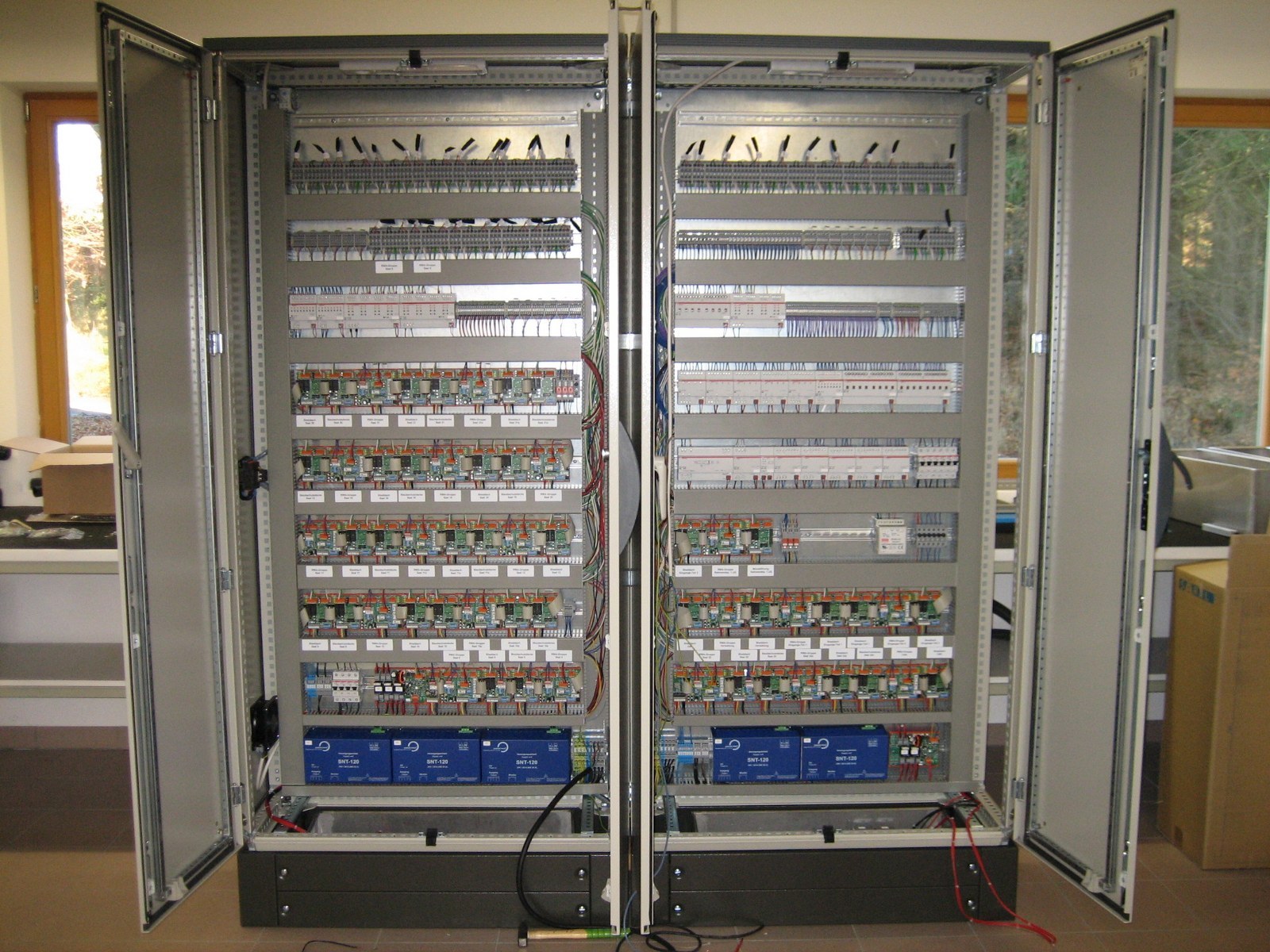

The electrical control unit M-SHEV-12-AP is a SHEV control unit in a steel-sheet housing with standard components. It contains the power supply, emergency power supply as well as the entire control unit for the operation of 24 V DC NC opening actuators.

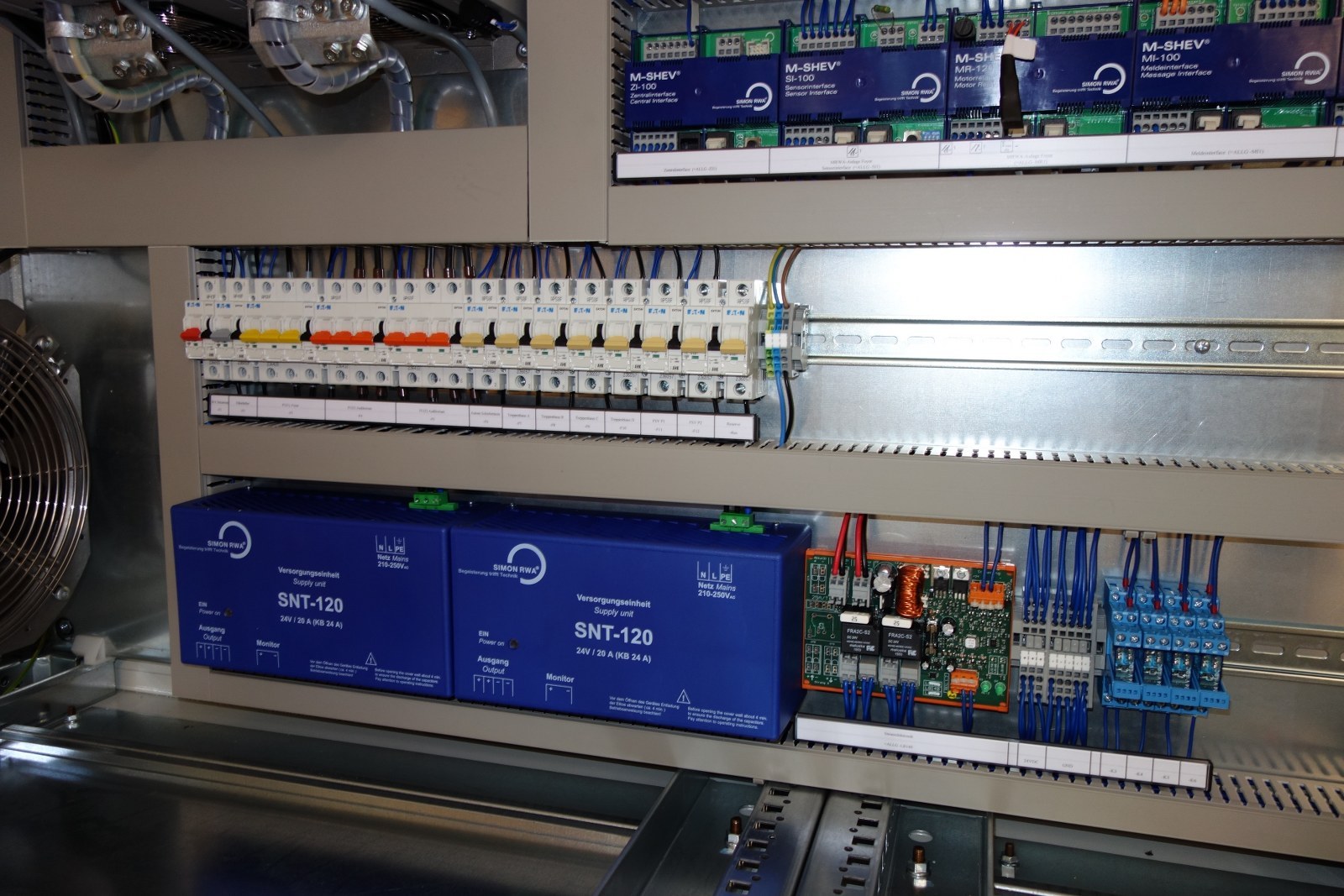

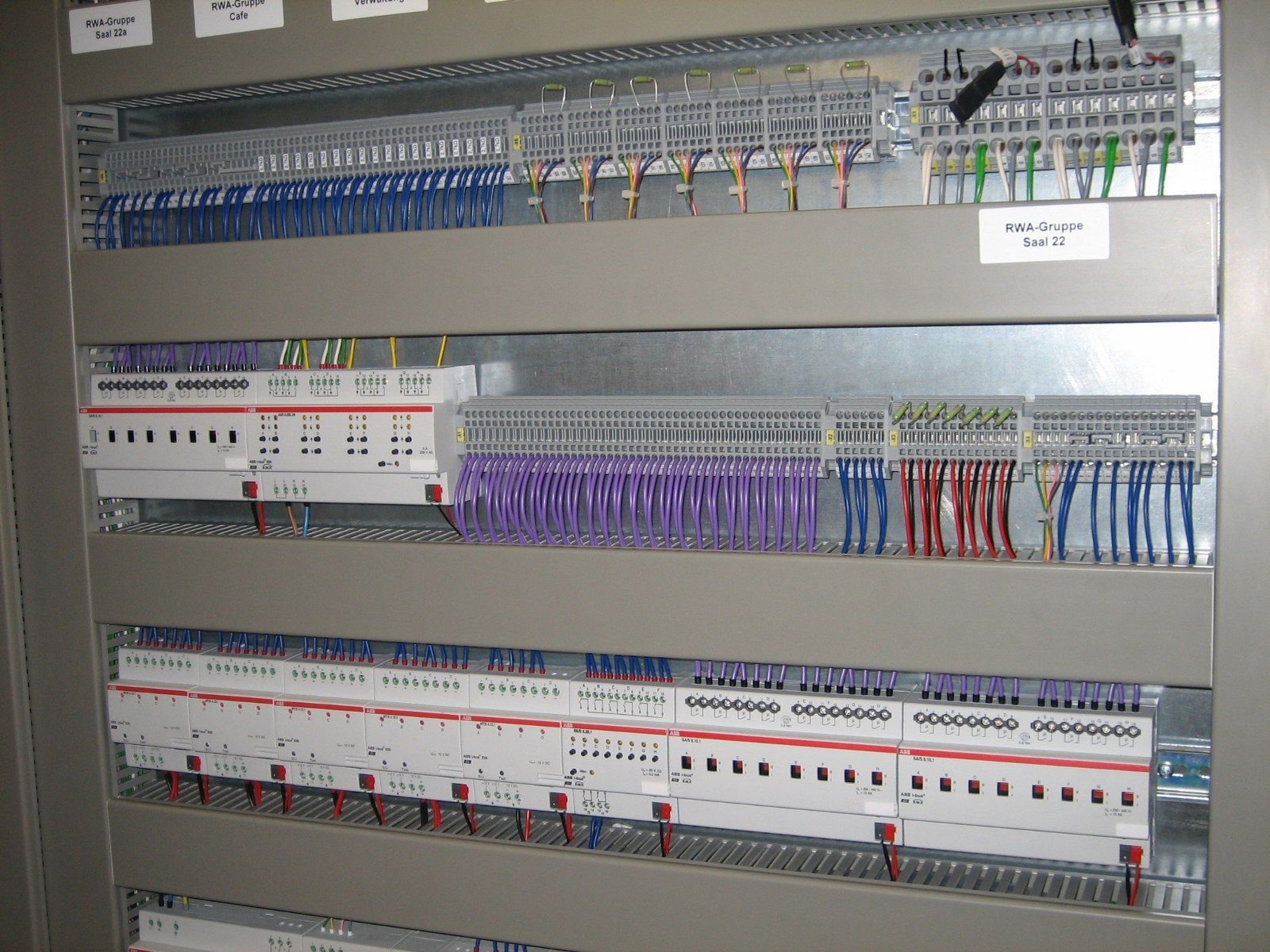

The control modules communicate with each other via bus technology. The electrical control unit M-SHEV-12-AP controls the connected opening actuators in case of fire as well as for daily ventilation.

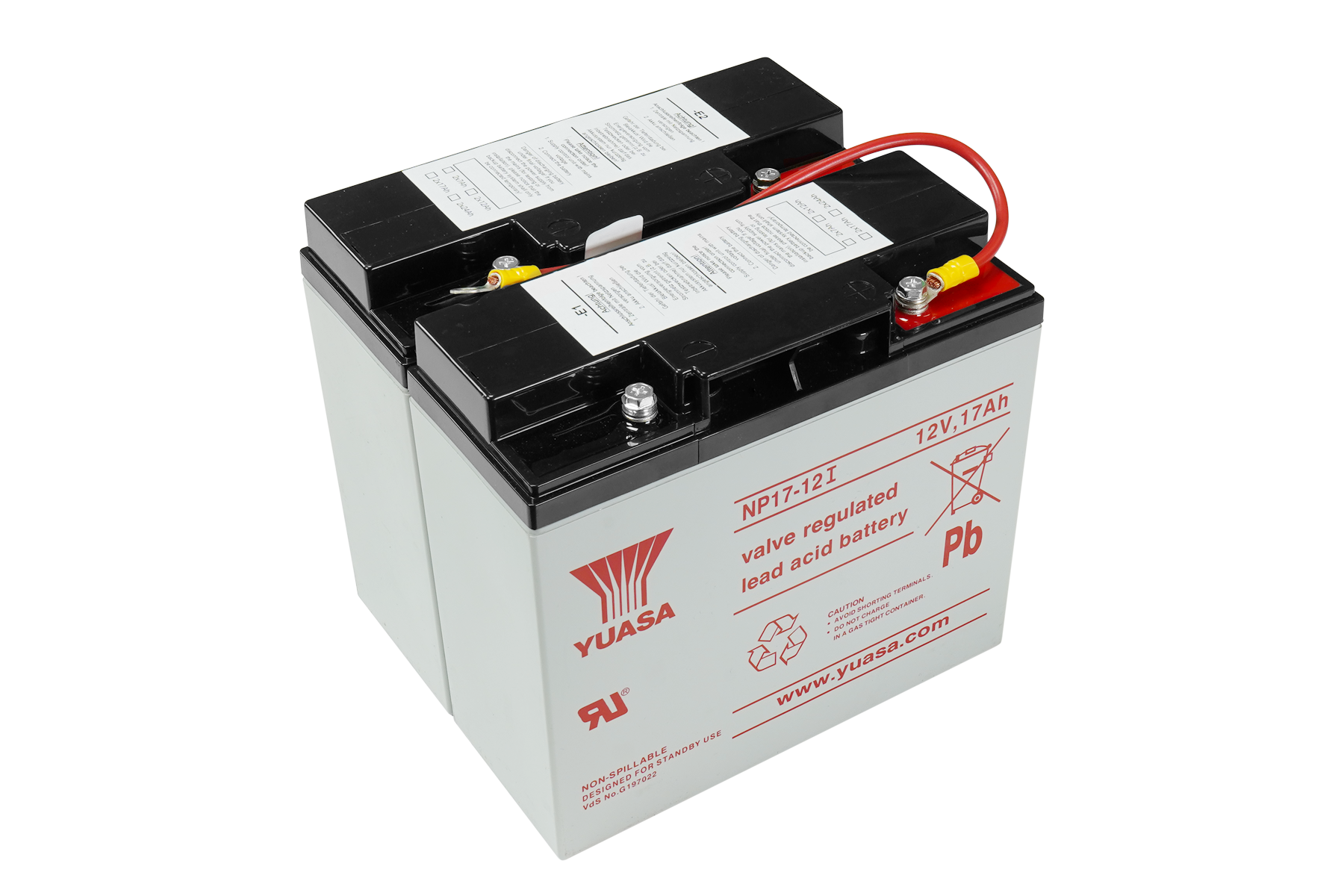

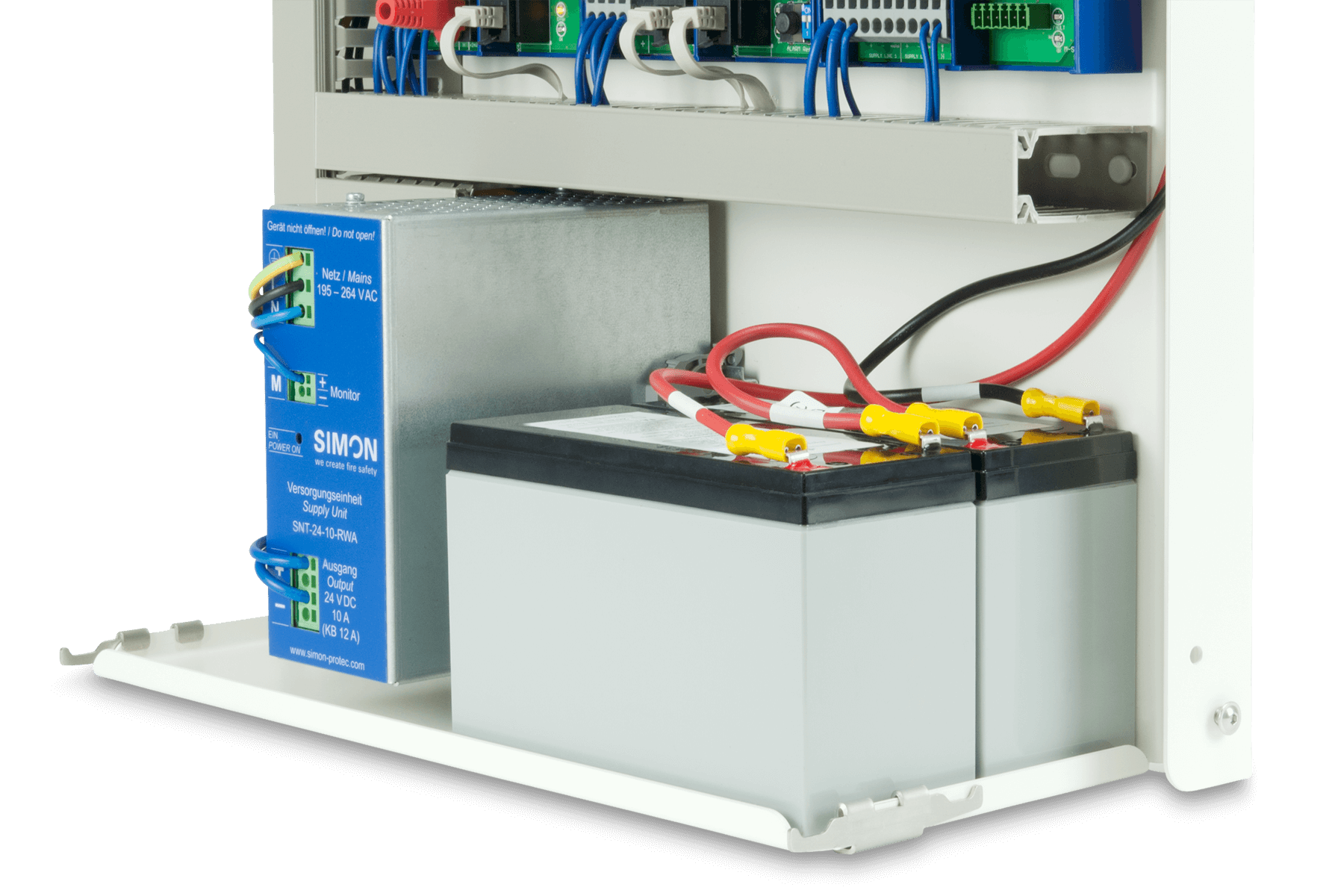

In the event of a power failure, the emergency power supply will ensure the function of the SHE system for at least 72 hours. The connection cables for SHEV buttons (emergency buttons), smoke detectors, fire alarm systems (BMZ) and actuators are monitored.

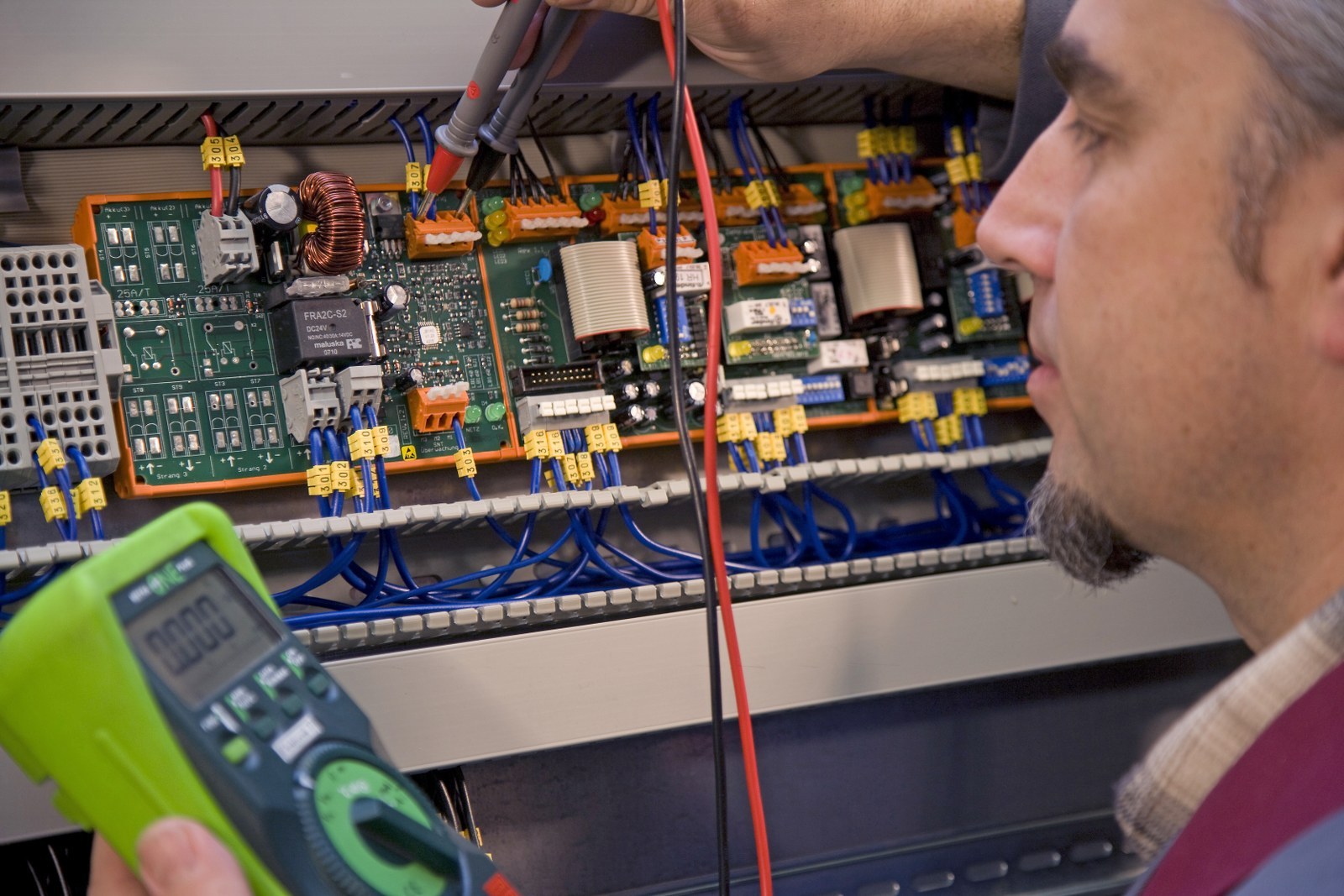

Via SimonLink, the parameterization and diagnostics software from Simon PROtec, it is possible to access the control unit and make product-specific changes. Maintenance and diagnostic work is also possible via SimonLink. All you need is a Windows operating system, the software, the software license and the USB-300 cable. Inspire your customers with quick and easy maintenance or fault diagnosis.
| Matchcode | M-SHEV-12-AP |
| Article name | Modular control panel M-SHEV-12-AP |
| Part number | ST4 3460 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 12 |
| Classification | CE certified EN 12101-10, tested ISO 21927-9 |

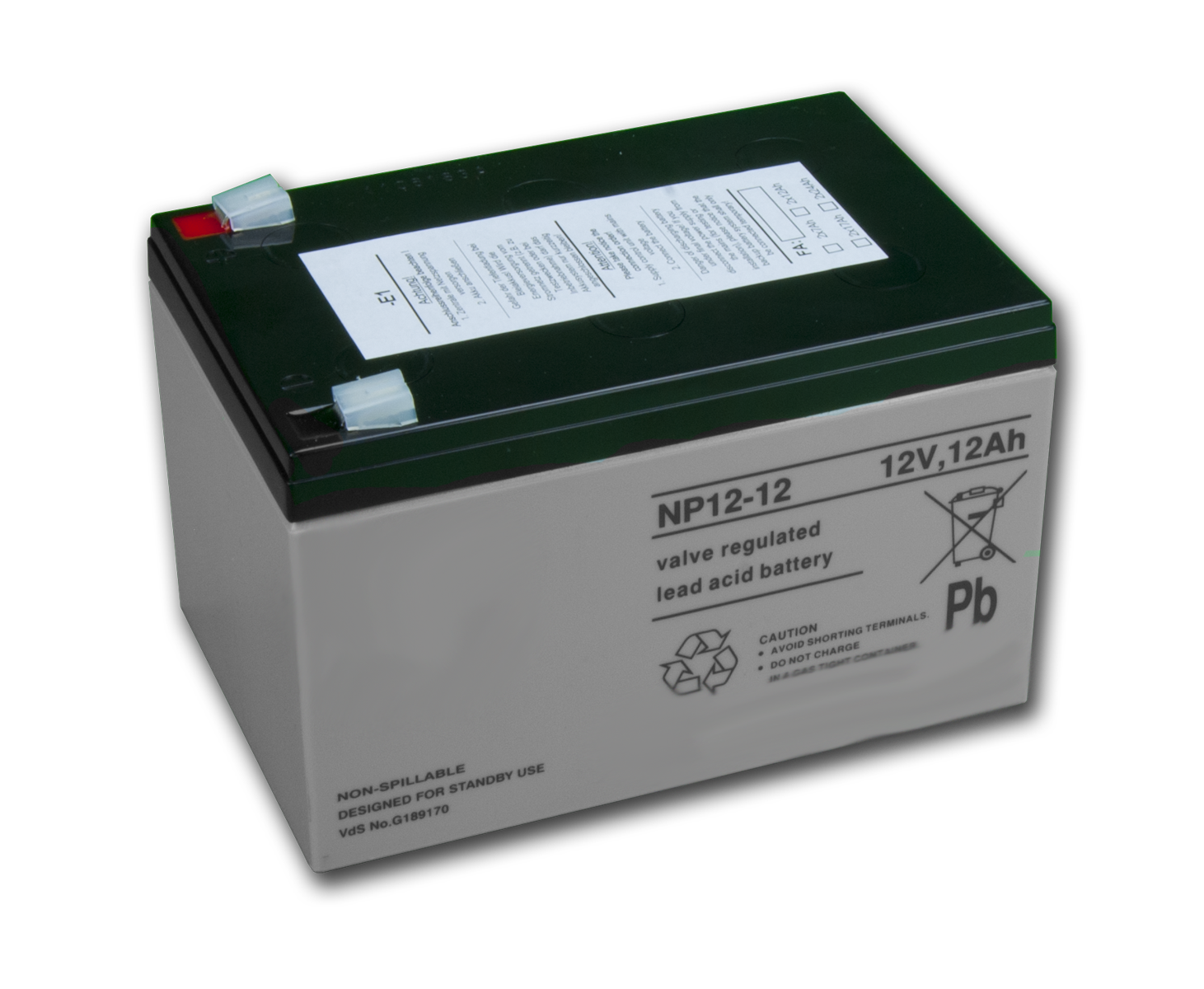

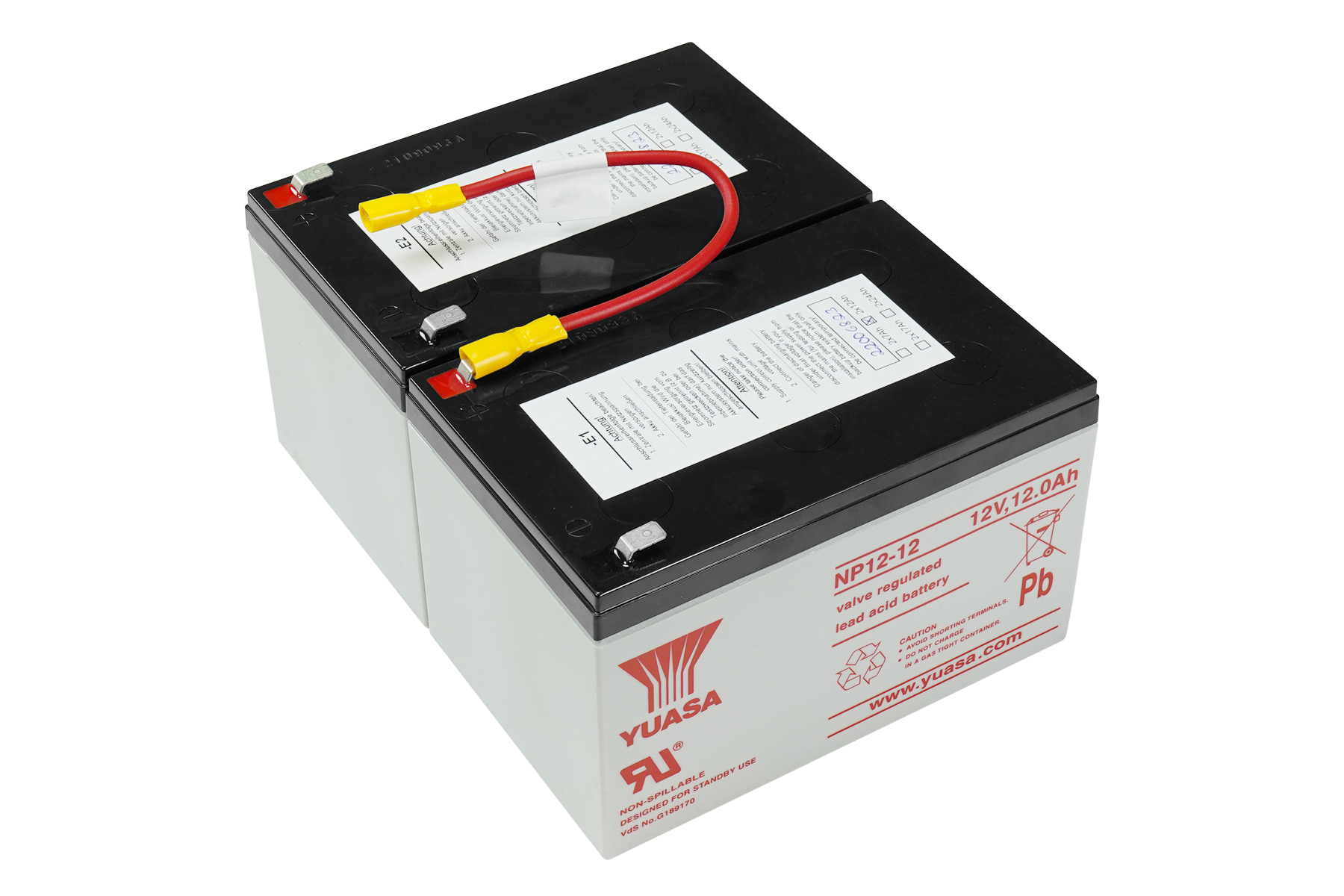

| LED signs | LED display operating status network: Permanent display green - mains available LED display operating status lead acid battery ("O.K."): Continuous green - battery is present and charging (charge is being maintained) |
| IP code | IP20 |
| SHE Groups | 1 |
| Ventilation groups | 1 |
| Weight | 14.3 |
| Housing | Sheet steel case |
| Housing type | |
| Colour | RAL 9010 |
| Housing width | 400 |
| Housing height | 516 |
| Housing depth | 155 |
| Appliance class | I |
| Environment temperature range | -5°C - +40°C |
Modular control panel M-SHEV-12-AP
230 V AC / 24 V DC / 12 A

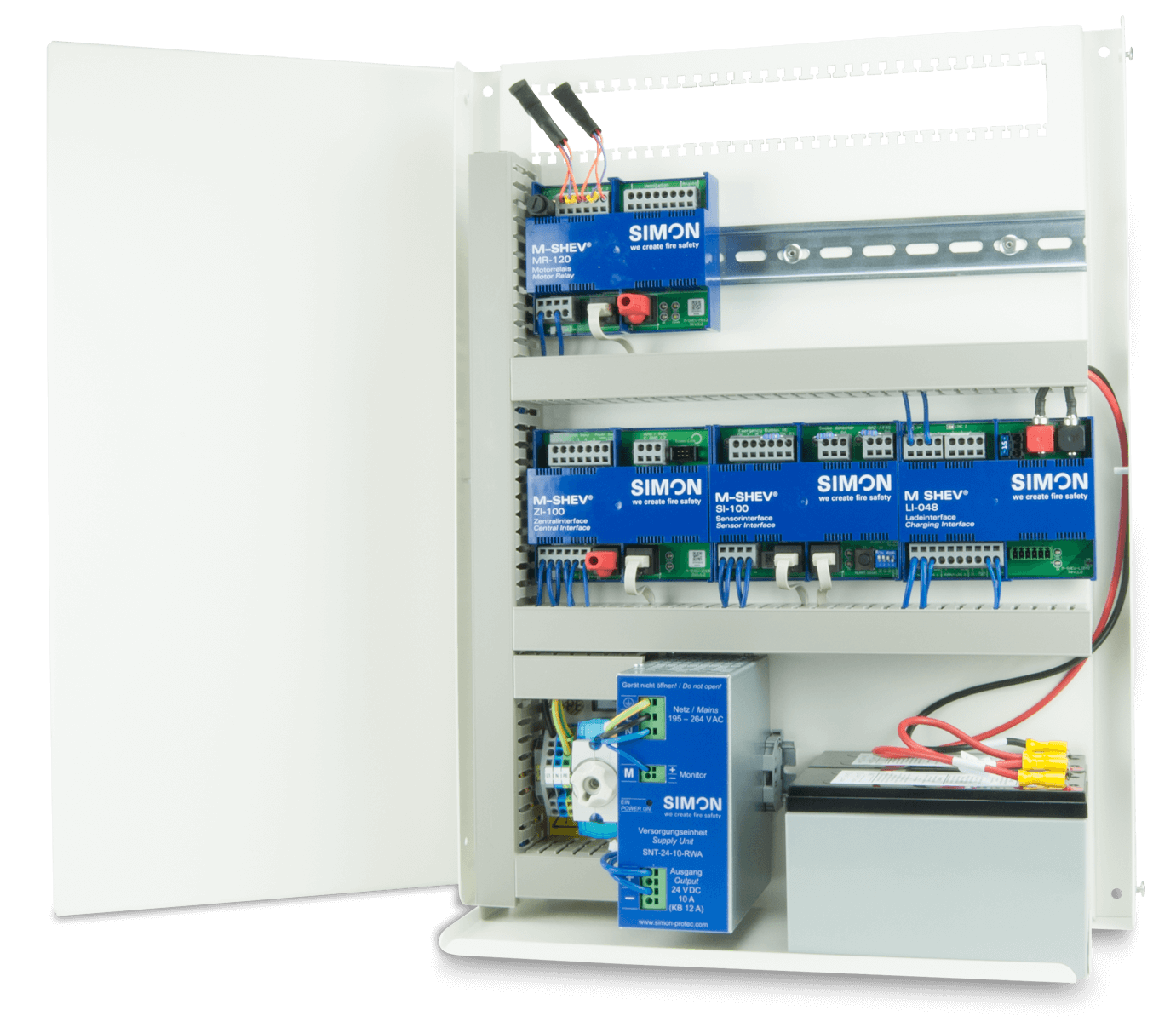

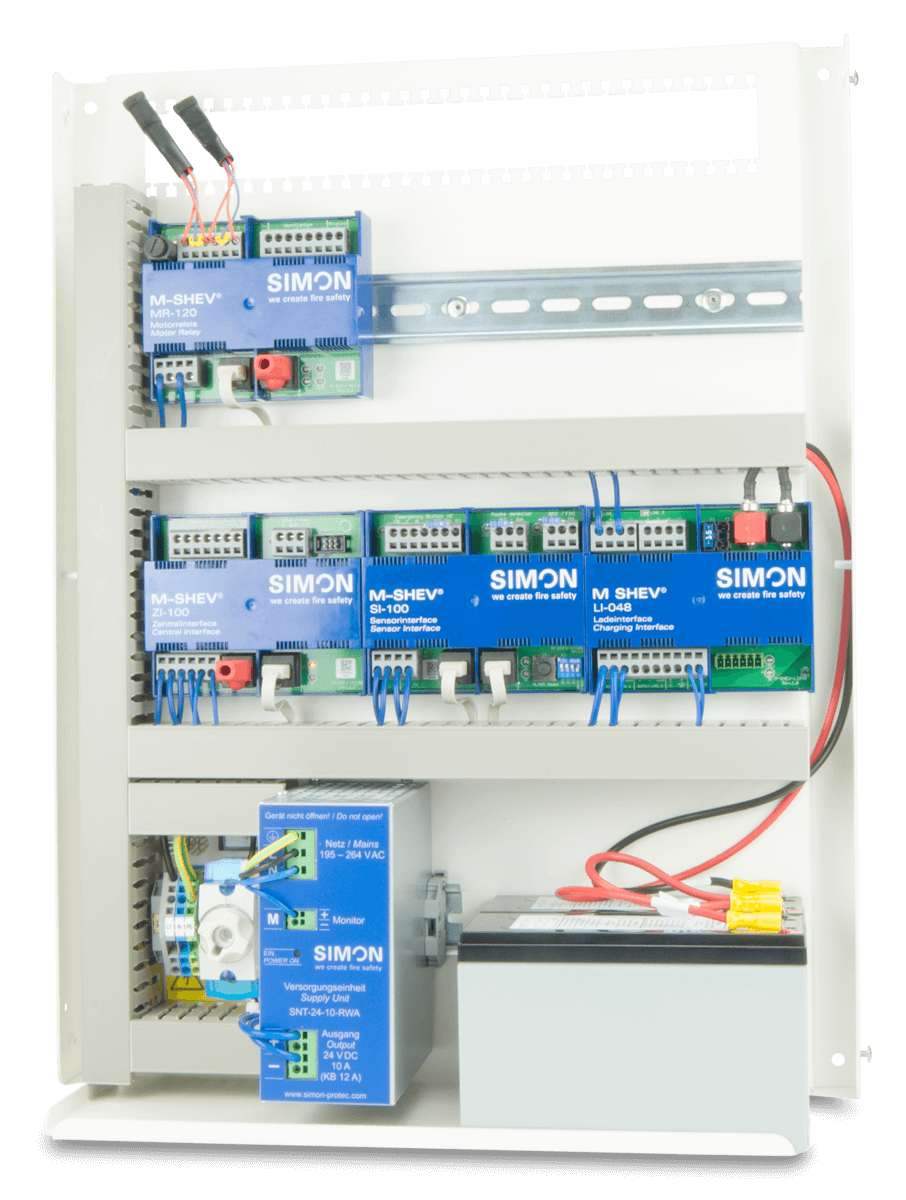

The M-SHEV-12-AP modular control panel is an electrical control device in a sheet steel housing with power supply, emergency power supply and all control and regulation electronics for operating 24 V DC actuators for building openings, e.g. windows and smoke exhaust flaps. The M-SHEV modular control panel controls actuators both in case of fire and for daily ventilation. In the event of a power failure, the emergency power supply ensures the function of the SHEV system for at least 72 hours. The M-SHEV modular control panel provides all necessary connections for release devices (push buttons, smoke detector, fire alarm system). In addition, various components can be connected for daily ventilation applications, e.g. wind/rain detectors and vent buttons. The ventilation function is at the same time a daily function check of the SHEV system. The M-SHEV modular control panel is CE certified according to EN 12101-10.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 12 A
Monitoring: continuous and short-term operation
Protection class: IP20
Temperature range: -5°C - +40°C
Housing: Sheet steel case
Color: RAL 9010
Dimensions (WxHxD): 400 x 516 x 155 mm
Weight: 14.3 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Typ: Modular control panel M-SHEV-12-AP
Article number: ST4 3460
WEEE-Reg.-Nr.: DE 97535049
