| Part number | ST4 4041 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 10 |
Product Information / Datasheet (PDF)
The M-VENT-10-AP is a modular controller for ventilation operation. It is equipped with a BUS technology and allows the connection of electrically operated NC units in 24 V DC and 230 V AC. The ventilation groups can be set up and controlled flexibly. For each group, modules are assigned that respond to the inputs and outputs as well as control commands. The control device is supplied via a switched-mode power supply.
With the M-VENT-10-AP up to two module units can be additionally installed. This allows a flexible application. For ease of installation for DIN rail mounting, these modules are "flat" design and have the same size 106 x 60 x 38 mm. The modules are supplied via a central 24 VDC power supply. Via spring-loaded terminals, peripheral devices and NC units can be connected.
The ventilation control consists of a basic unit of basic modules that communicate via an internal BUS connection. This allows factory and customer-specific parameterization. At the touch of a button, the modules can be identified via a visual display. The basic modules are the central interface ZI-100, the motor relay MR-120-V, the message interface MI-100 and the bus interface BI-100-MB. The corresponding software interface SIMON-LINK can be obtained from the manufacturer.
Your benefits at a glance:
| Matchcode | M-VENT-10-AP (2 FMU) |
| Article name | Ventilation control unit M-VENT-10-AP |
| Part number | ST4 4041 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 10 |
| LED signs | white: WTS; yellow: failure; green: OK |
| IP code | IP20 |
| Weight | 4.5 |
| Housing | Sheet steel housing 301 x 323 x 85 mm (WxHxD), surface-mounting |
| Housing type | |
| Colour | RAL 9010 white |
| Housing width | 301 |
| Housing height | 323 |
| Housing depth | 85 |
| Environment temperature range | -5°C - +60°C |
Modular ventilation control M-VENT-10-AP
230 V AC / 24 V DC / 10 A

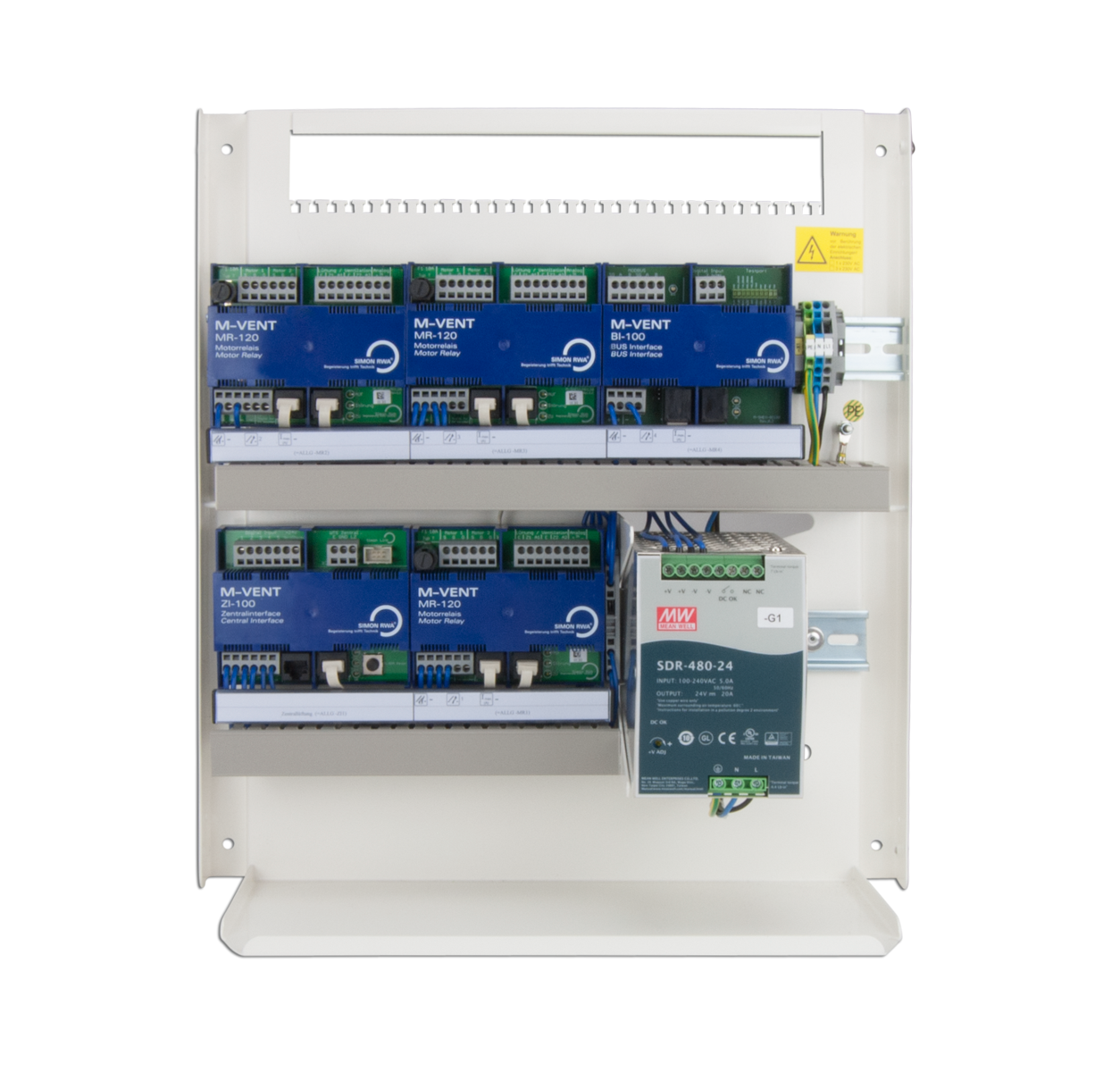

The M-VENT (Modular Ventilation) ventilation control panel is an electrical control device in a sheet steel housing with power supply and all control and regulation electronics for the operation of 24 V DC actuators for daily aeration and ventilation. Ventilation signals from ventilation buttons, wind / rain detectors and central ventilation commands (e.g. building management system) can be processed. The basic M-VENT control system consists of three different components (optionally up to five): power supply (switching power supply), central interface ZI-100, motor relay MR-120, message interface MI-100 (optional) and bus interface BI-100 (optional).
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 10 A
Protection class: IP20
Temperature range: -5°C - +60°C
Housing: Sheet steel case, powder-coated
Color: RAL 9010
Dimensions (WxHxD): 301 x 323 x 85 mm
Weight: 4.5 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Typ: Modular ventilation control panel M-VENT-10-AP
Article number: ST4 4041
WEEE Reg. No.: DE 97535049
