Part number | A3 2133 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV ON) Yellow = breakdown Green = ready |
The electrical SHEV-emergency button type HE 080 Blue is used as a main SHEV-button. It complies with DIN 18232/2 and the LBO. The heat and smoke extraction button controls the respective electrical control unit manually in case of fire, thus activating the smoke exhaust system.
The HE 080 Blue comes with an integrated buzzer. In the event of an alarm or fault, the button emits an acoustic signal. The button or the signal can be reset with the mute button.
Manual control unit at a glance:
Matchcode | HE 080 Blue |
Article name | Main SHEV button typ HE 080 Blue |
Part number | A3 2133 |
Input voltage | 24 V DC |
LED signs | Red = triggering (SHEV ON) Yellow = breakdown Green = ready |
IP code | IP40 |
Weight | 0.2 |
Housing | Surface-mounted plastic housing, optionally in flush-mounted housing with revolving door, impact glass and key |
Housing type | |
Colour | RAL 5009 |
Housing width | 125 |
Housing height | 125 |
Housing depth | 36 |
Appliance class | III |
Nominal working temperature | 20 |
Environment temperature range | -5 °C - 75 °C |

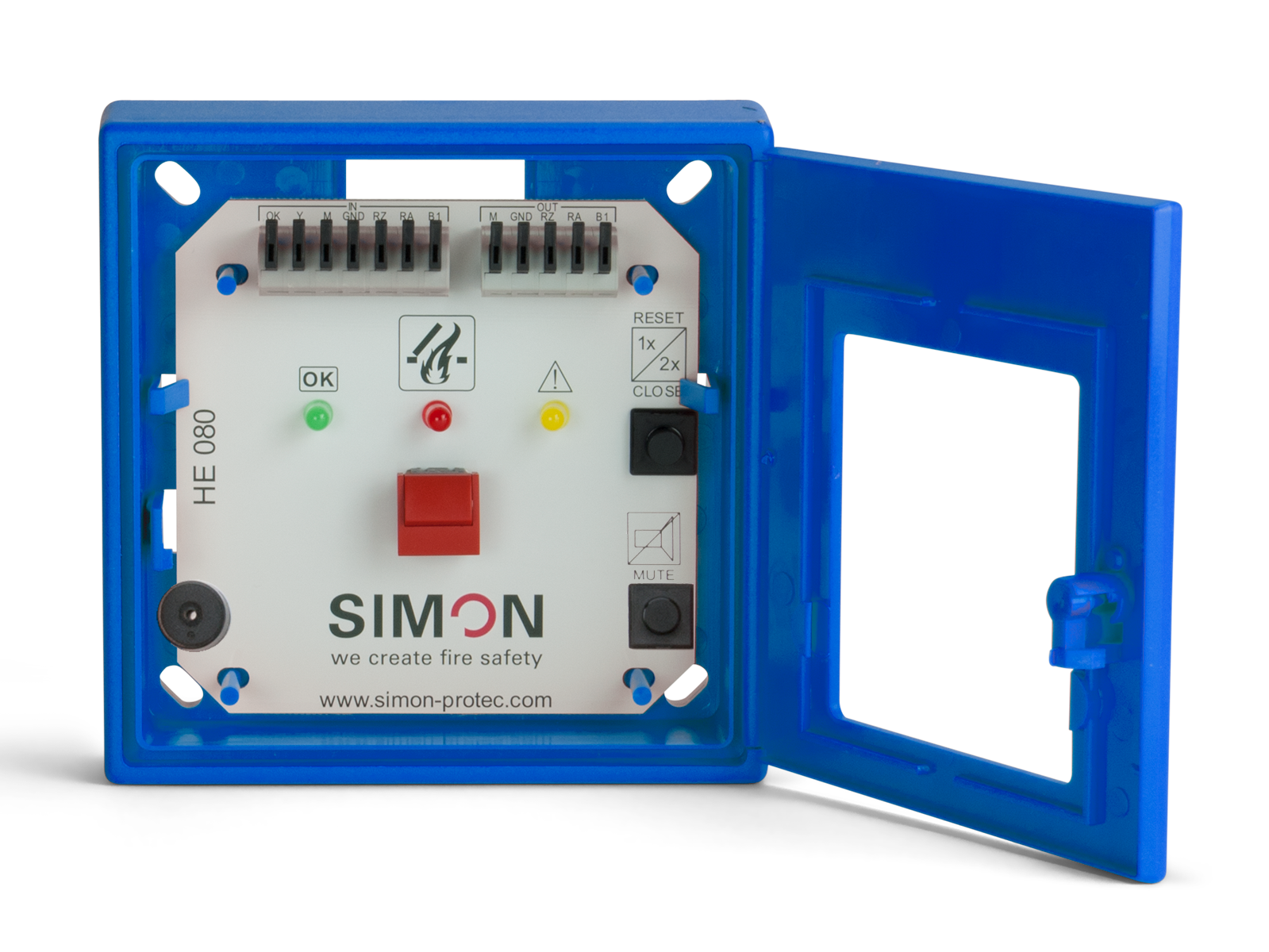

Electrical manual emergency override switch HE-080 blau
The HE 080 Blue is a main SHEV button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9) with a replaceable board. The "up" button and the "CLOSE" button (NO contact) are included. Three LED displays for SHEV - "triggered" = red, "ready for operation" = green and "fault" = yellow were installed in the electrical manual control unit according to the VdS guideline 2592 and in the sense of the MBO. When triggered and faulted, a buzzer sounds. The mute button is included.

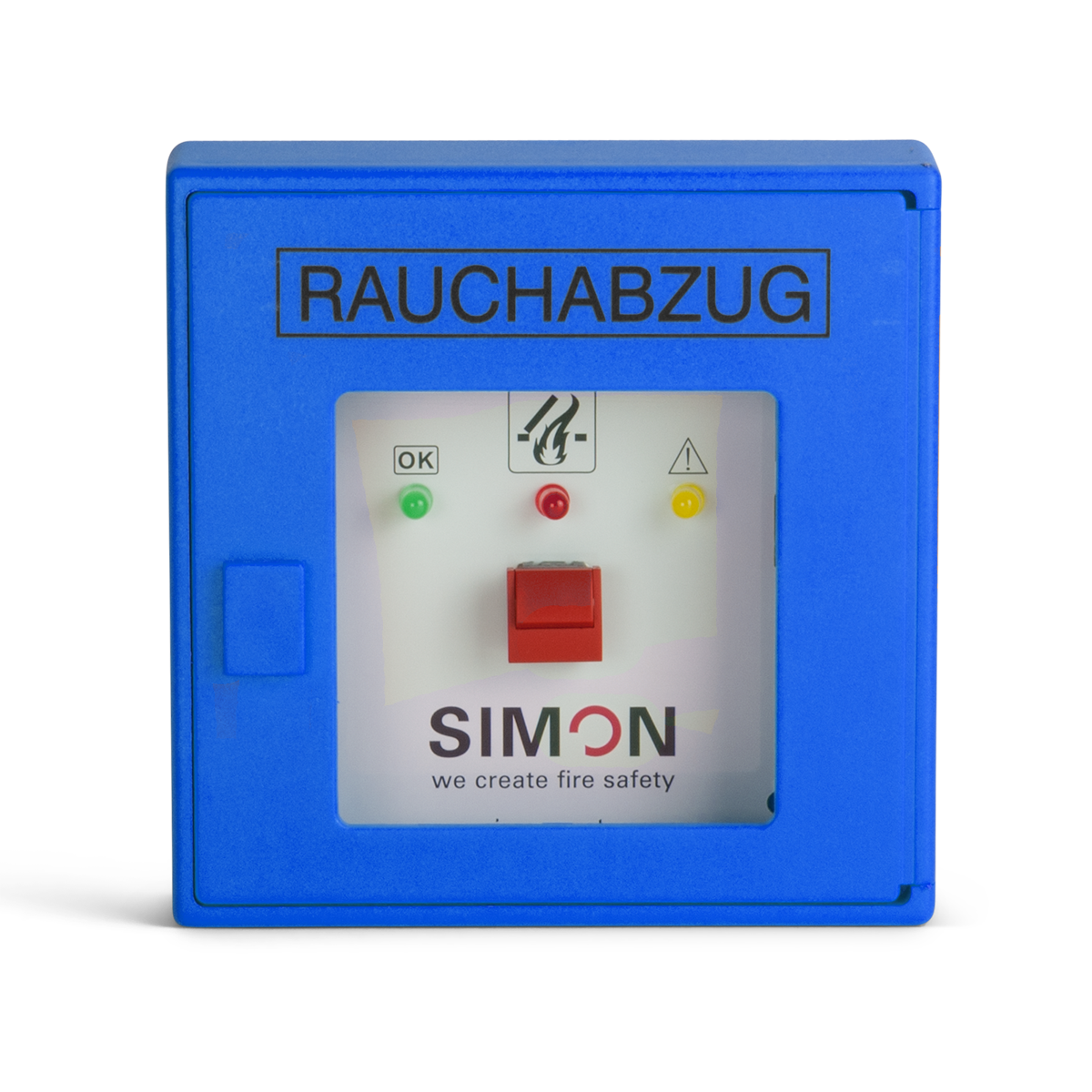

The HE 080 is available in shock-resistant plastic housing (ABS) in accordance with DIN 14655 in RAL color 5009 - complete with thin glass pane and key as a unit.
Dimensions: 125 * 125 * 36 mm (H * W * D)
